Introduction

In this installation guide we have provided step by step instructions to remove the OEM turbocharger and install the 27WON Performance Turbocharger.

Advisory:

  • Working under the vehicle requires a safe and sturdy location for the vehicle to sit on jackstands.
  • The exhaust piping, turbocharger, and cooling system will be hot after recent vehicle operation. Allow the vehicle to cool or use a fan to cool the exhaust components before working on the vehicle.
  1. First and foremost; THANK YOU for becoming a part of the 27WON Family.  We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support
    • First and foremost; THANK YOU for becoming a part of the 27WON Family. We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support

    • Use of 5W-30 engine oil recommended

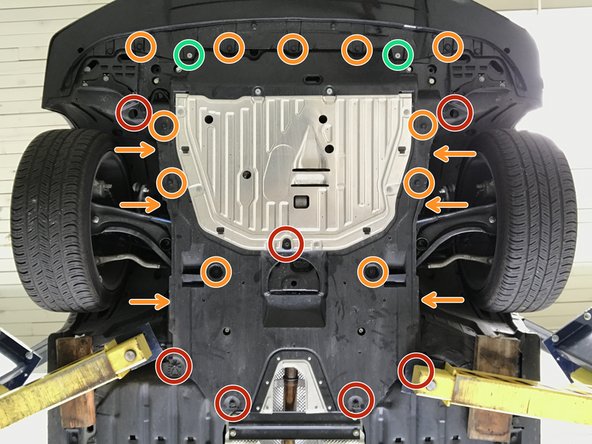

  2. Locate the engine skidtray to gain access to the downpipe and front-pipe
    • Locate the engine skidtray to gain access to the downpipe and front-pipe

    • Use 5mm Allen to remove the two (2) bolts shown in green circles

    • Use 10mm socket & ratchet to remove the seven (7) bolts shown in red circles

    • Use a flathead screwdriver to remove the seventeen (17) plastic push-clips. Orange arrows identify the push-clips described in the next step (3)

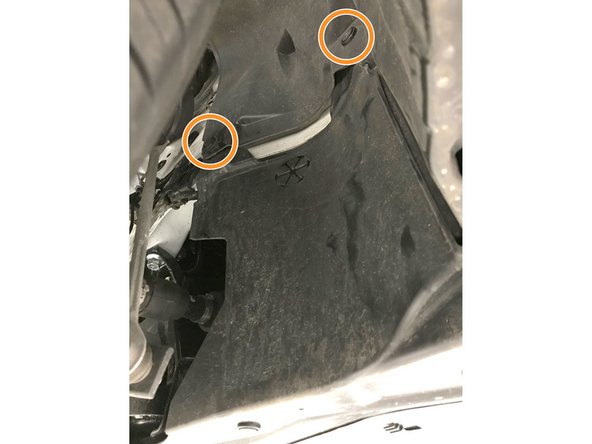

  3. Use large flat head screw driver to remove push-clips on each side of skidtray Use large flat head screw driver to remove push-clips on each side of skidtray

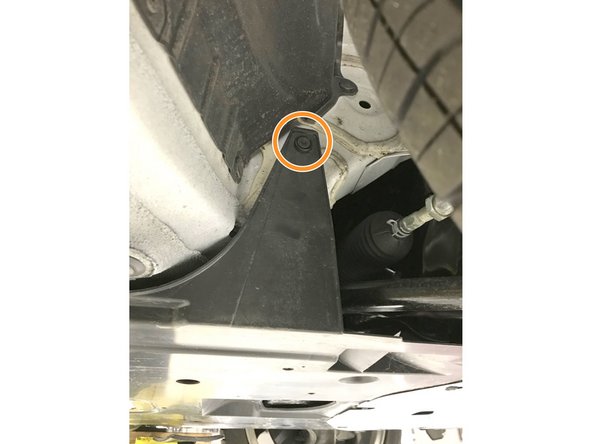

    • Use large flat head screw driver to remove push-clips on each side of skidtray

  4. Disconnect the wiring harness from the MAF Sensor Remove the wire cover from the airbox

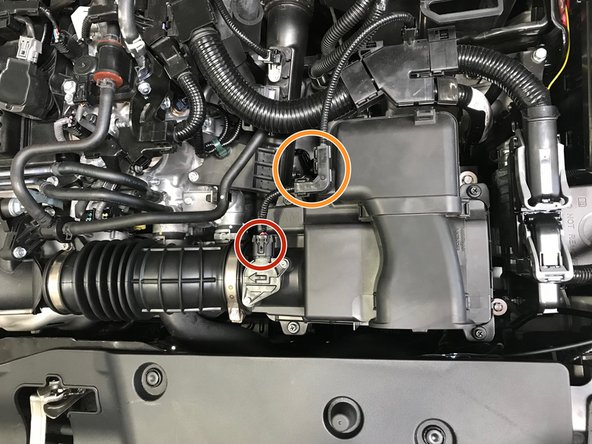

    • Disconnect the wiring harness from the MAF Sensor

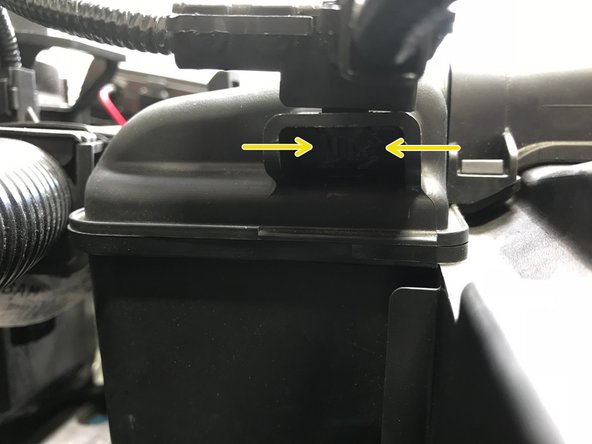

    • Remove the wire cover from the airbox

    • Use needle noise pliers to pinch the clips then pull the cover off the airbox

  5. Use a 10mm socket, extension & ratchet to loosen the two (2) 10mm bolts You can leave the bolts loose in position during airbox removal
    • Use a 10mm socket, extension & ratchet to loosen the two (2) 10mm bolts

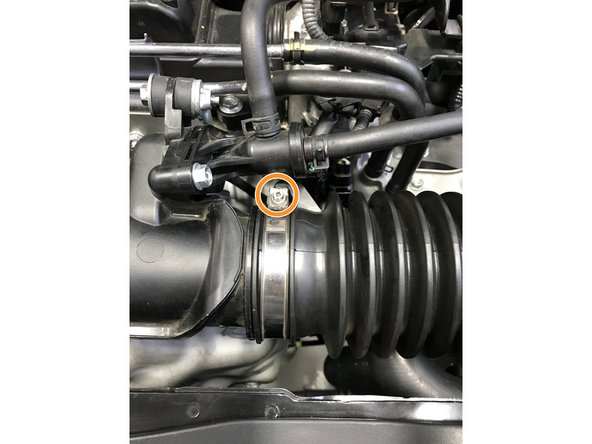

    • You can leave the bolts loose in position during airbox removal

    • Use a 5.5mm socket to loosen the hose clamp

    • A small phillips screwdriver can be used, but is not recommend because the hose clamp head strips easily

  6. Pull the hose off the turbo inlet pipe in the direction of the arrow With the hose loose, remove the entire airbox from the engine bay
    • Pull the hose off the turbo inlet pipe in the direction of the arrow

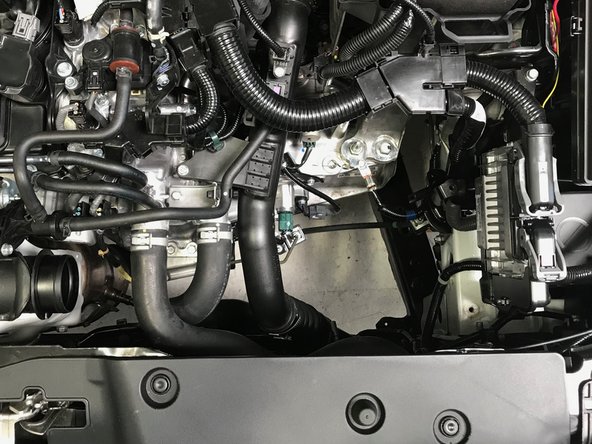

    • With the hose loose, remove the entire airbox from the engine bay

    • The result will look as shown in the second image

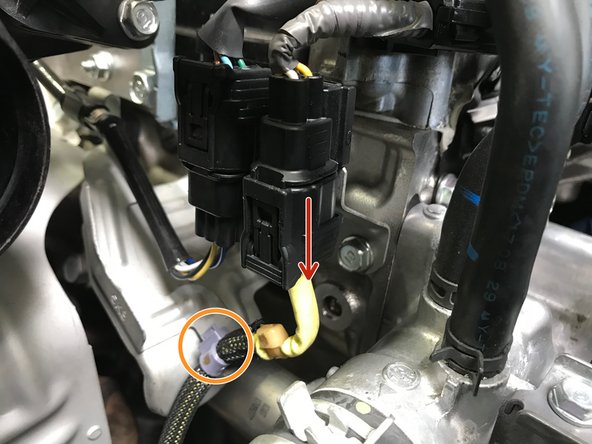

  7. Disconnect the O2 sensor wire as shown with red arrow
    • Disconnect the O2 sensor wire as shown with red arrow

    • Use small pliers to remove the purple clip from the bracket

    • Pinch the back side of the purple clip and push through the bracket

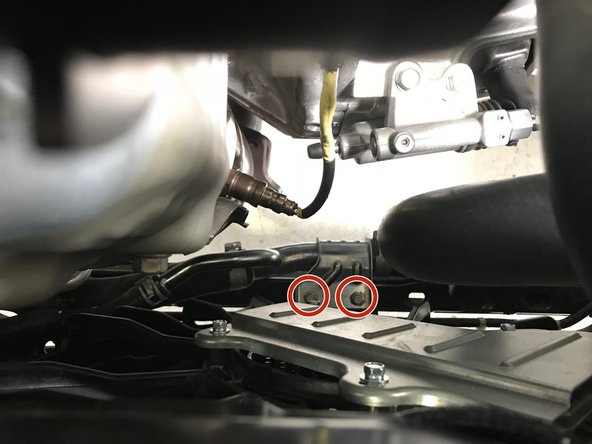

  8. Verify that the bracket and radiator hose are not hot.  If hot allow the vehicle to cool before proceeding Moving the radiator hose allows improved clearance for downpipe removal
    • Verify that the bracket and radiator hose are not hot. If hot allow the vehicle to cool before proceeding

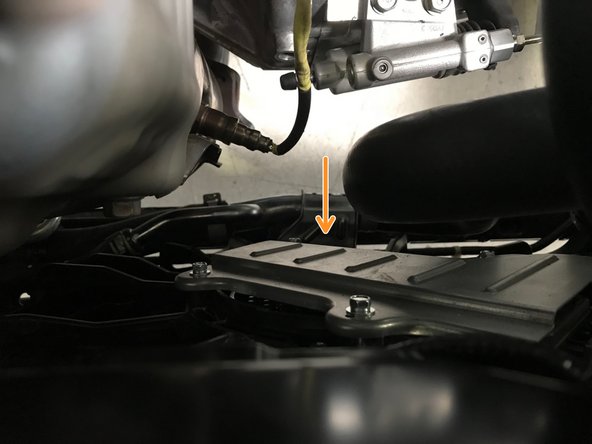

    • Moving the radiator hose allows improved clearance for downpipe removal

    • Use a 10mm socket & ratchet to remove the two (2) 10mm bolts holding the lower radiator hose in place

    • With the bolts removed, move the radiator hose upward and forward

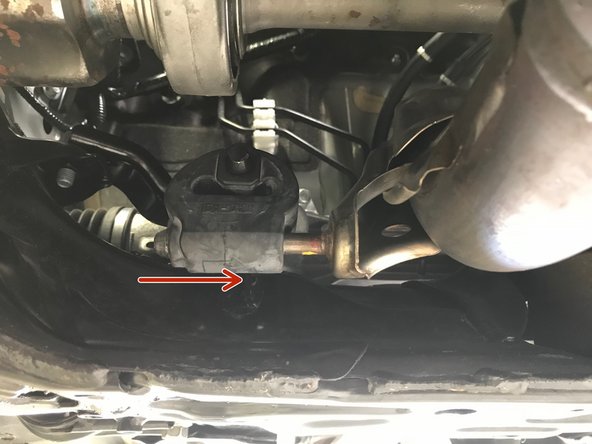

  9. Apply a small amount of silicone spray to the end of the hanger rod (red arrow)

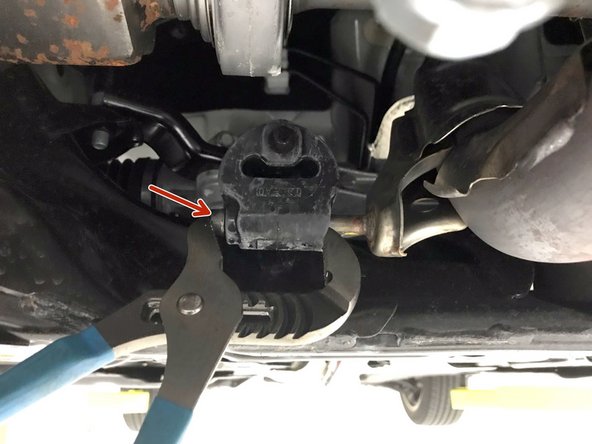

    • Apply a small amount of silicone spray to the end of the hanger rod (red arrow)

    • Use the tongue and groove pliers as shown to remove the rubber hanger

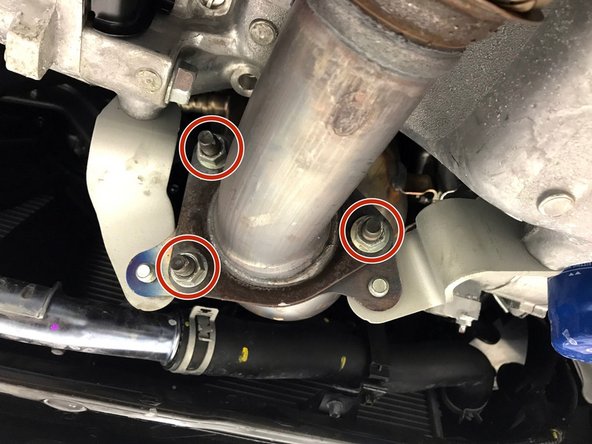

  10. Use a 14mm socket and ratchet to remove the three OE nuts
    • Use a 14mm socket and ratchet to remove the three OE nuts

    • It is possible that the stud will thread out of the downpipe flange. This is not an issue, the stud can be threaded back into the flange like a bolt

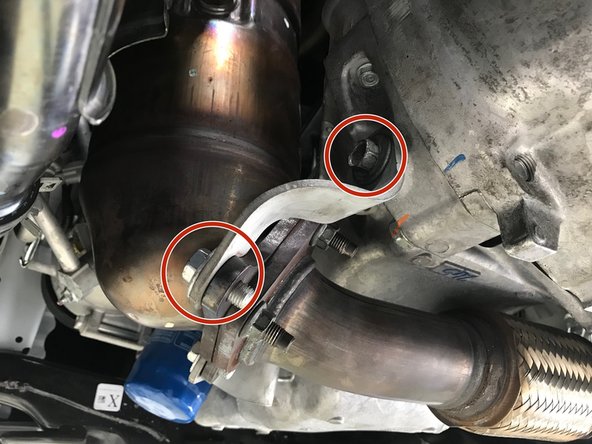

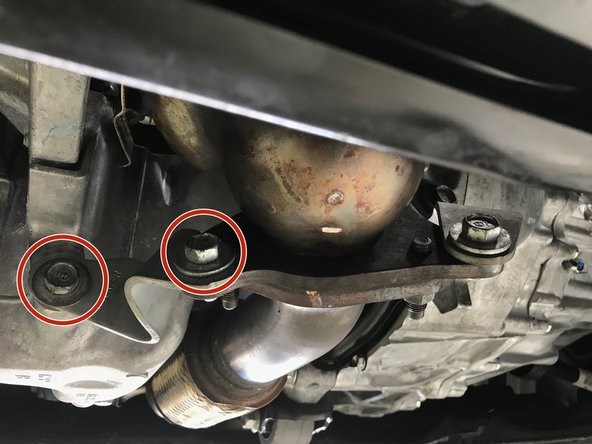

  11. Verify that the brackets and coolant hose are not hot.  If hot allow the vehicle to cool before proceeding Use a 14mm socket & ratchet or wrench to remove the four (4) 14mm bolts as shown in red circles in two images
    • Verify that the brackets and coolant hose are not hot. If hot allow the vehicle to cool before proceeding

    • Use a 14mm socket & ratchet or wrench to remove the four (4) 14mm bolts as shown in red circles in two images

    • Remove the brackets from the vehicle

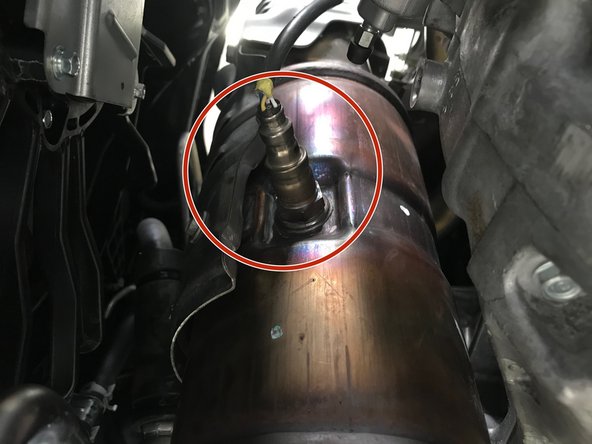

  12. Locate the secondary O2 sensor on the downpipe Locate the specialty socket - 22mm or 7/8" O2 sensor socket Use the ratchet wrench in the specialty socket to remove the O2 sensor
    • Locate the secondary O2 sensor on the downpipe

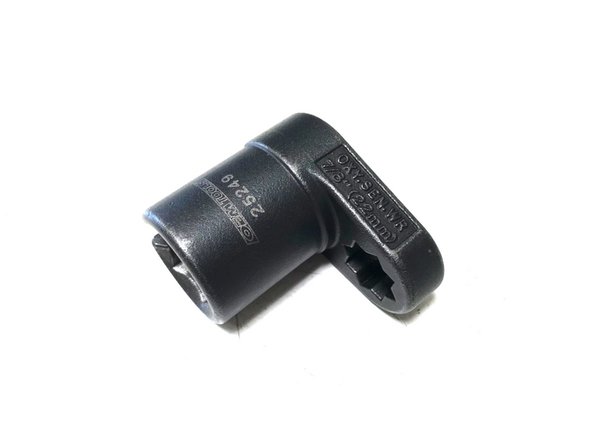

    • Locate the specialty socket - 22mm or 7/8" O2 sensor socket

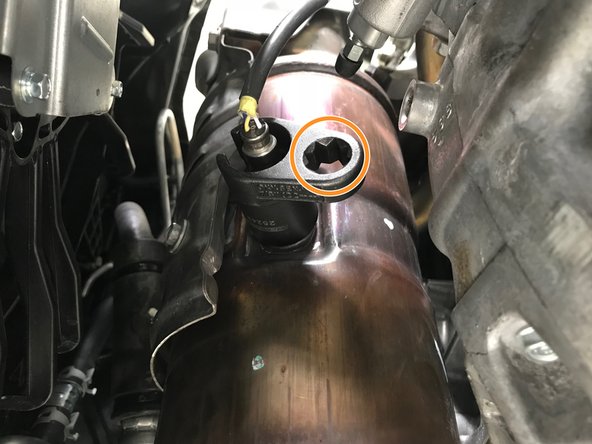

    • Use the ratchet wrench in the specialty socket to remove the O2 sensor

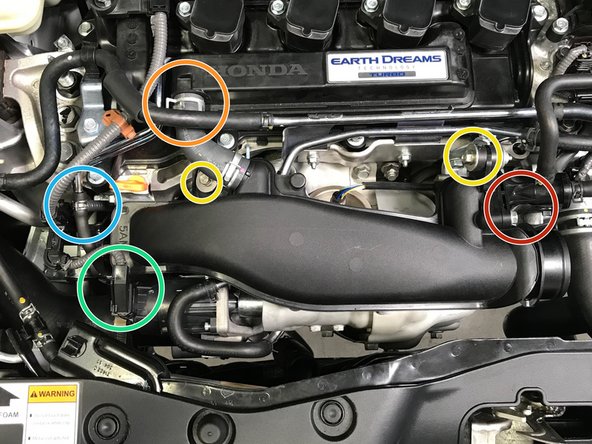

  13. Going forward we will reference the black plastic pipe connected to the turbo as the "Turbo Inlet Pipe (TIP)"
    • Going forward we will reference the black plastic pipe connected to the turbo as the "Turbo Inlet Pipe (TIP)"

    • The following components are identified for clarity in the following steps

    • EVAP Bleed Air

    • Valve Cover Breather Hose

    • TIP Mounting Points

    • Waste Gate Actuator (WGA) Wiring Connection

    • By-Pass Valve (BPV) Hoses

  14. Use a 10mm socket & ratchet to remove the two (2) 10mm bolts Pull the EVAP bleed air out of the TIP and set to the side

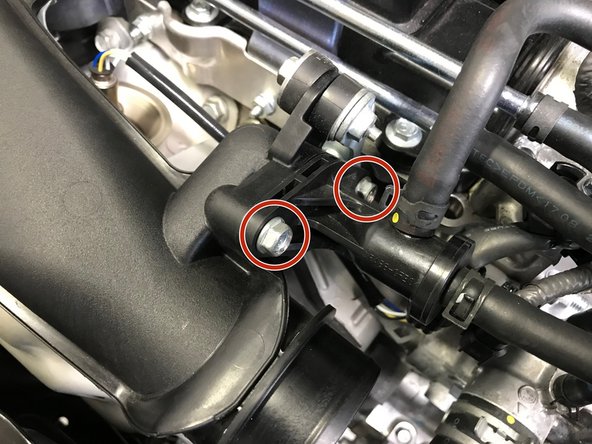

    • Use a 10mm socket & ratchet to remove the two (2) 10mm bolts

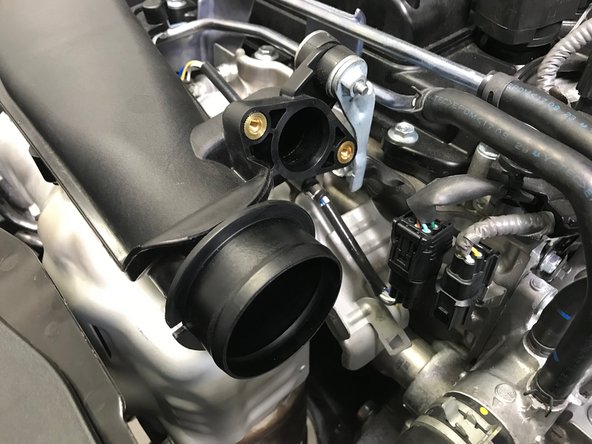

    • Pull the EVAP bleed air out of the TIP and set to the side

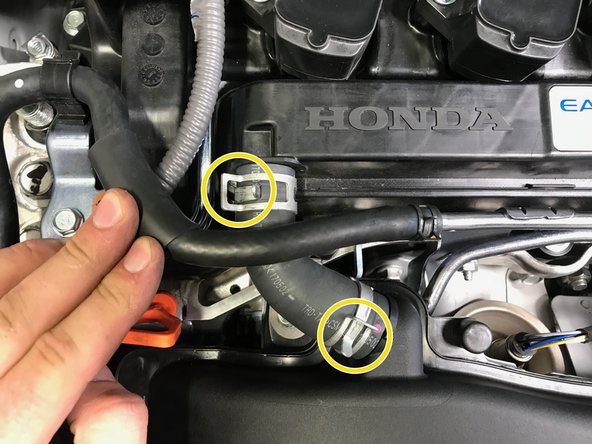

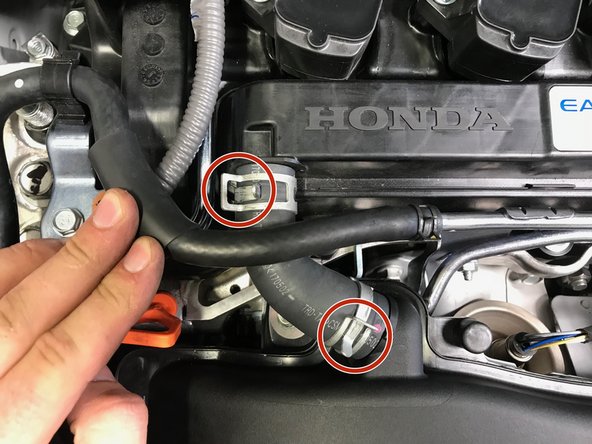

  15. Use pliers to loosen the spring clamps.  Slide the clamps towards the center of the hose Pull the hose off the valve cover first
    • Use pliers to loosen the spring clamps. Slide the clamps towards the center of the hose

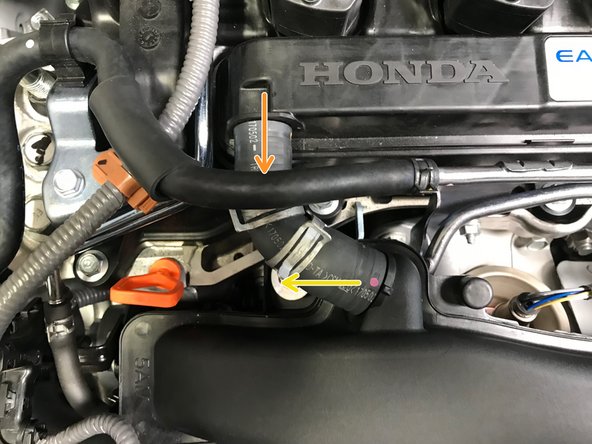

    • Pull the hose off the valve cover first

    • Pull the hose off the TIP second

  16. Disconnect the wiring from the Waste Gate Actuator (WGA) Locate the wiring loom

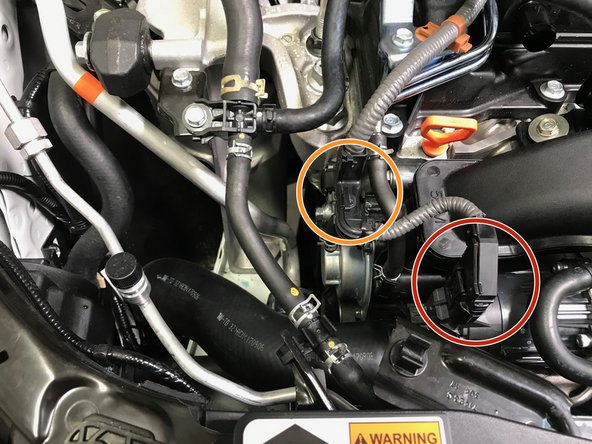

    • Disconnect the wiring from the Waste Gate Actuator (WGA)

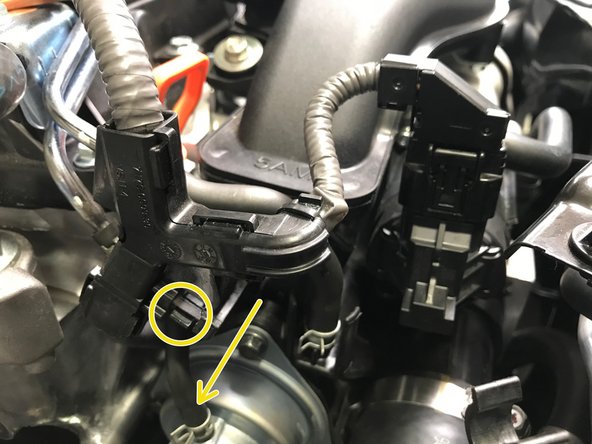

    • Locate the wiring loom

    • Press down on the small tab and pull the wiring loom from the bracket in the direction of the yellow arrow

    • Move the wiring harness towards the rear of the car out of the way

  17. Use pliers to loosen the spring clamps.  Slide the spring clamps with red circles towards the center of the hose Pull the BPV hoses off the metal tubes in the direction of the orange arrows

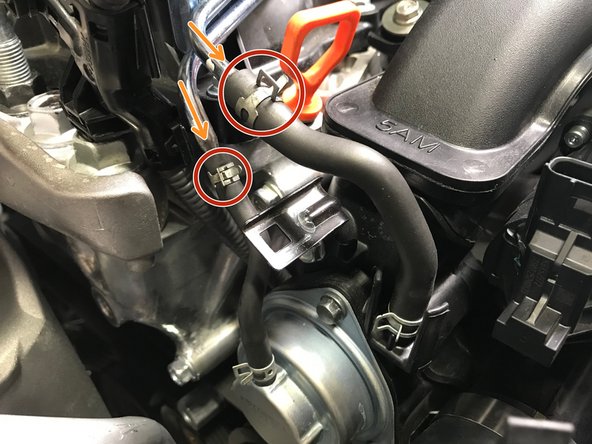

    • Use pliers to loosen the spring clamps. Slide the spring clamps with red circles towards the center of the hose

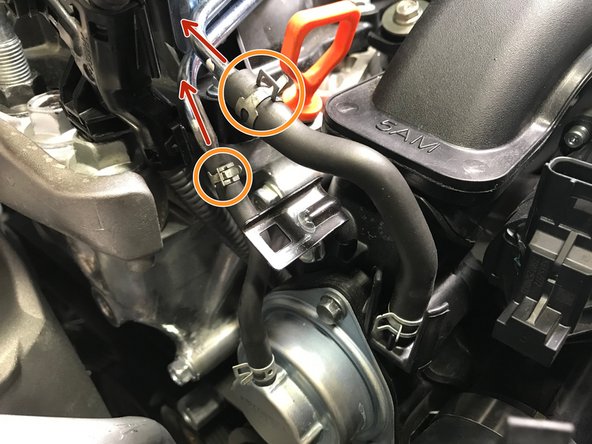

    • Pull the BPV hoses off the metal tubes in the direction of the orange arrows

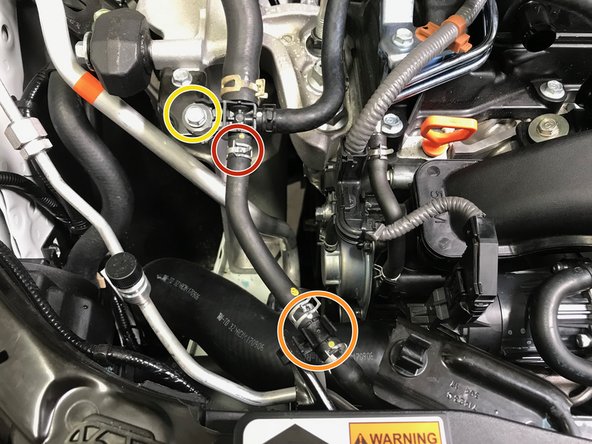

  18. Use pliers to loosen the spring clamp.  Slide the clamp towards the center of the  of the hose
    • Use pliers to loosen the spring clamp. Slide the clamp towards the center of the of the hose

    • Pop the hose out of the plastic clip

    • Pull the hose off the plastic "T". Move the hose towards the front of the car out of the way

    • Some coolant may spill from the hose and "T" connection

    • Use a 10mm socket & ratchet to remove the bolt holding the "T" connection

  19. Use a 10mm socket & ratchet or Phillips screwdriver to loosen the worm-gear clamp Pull the hose off the TIP in the direction of the arrow

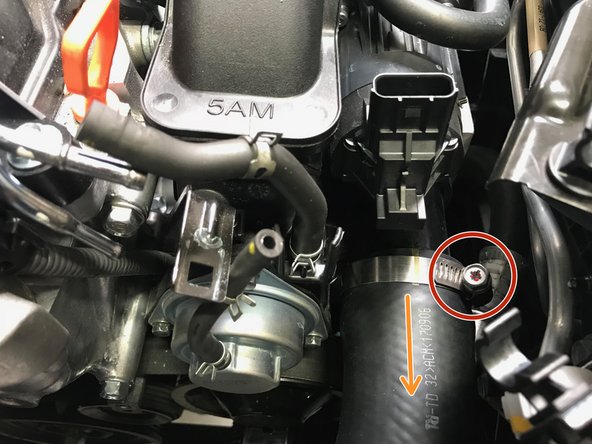

    • Use a 10mm socket & ratchet or Phillips screwdriver to loosen the worm-gear clamp

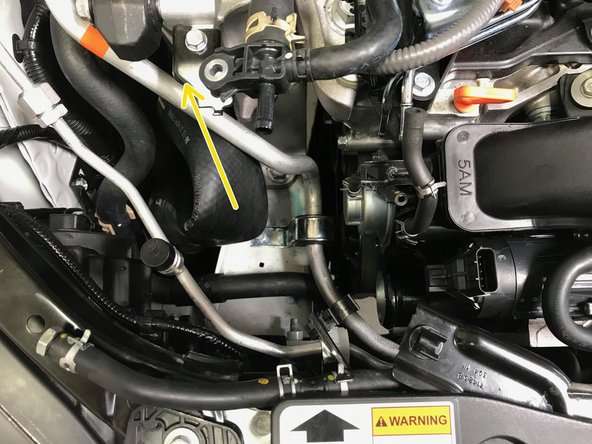

    • Pull the hose off the TIP in the direction of the arrow

    • Remove the clamp from the hose so it does not get lost in the engine bay

    • Bend the hose towards the rear of the car. Stuff it into the fender liner out of the way

  20. Use a 10mm socket & ratchet to remove the two (2) TIP mounting bolts

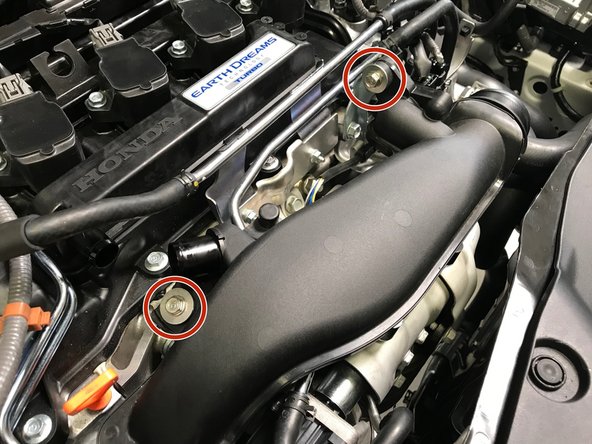

    • Use a 10mm socket & ratchet to remove the two (2) TIP mounting bolts

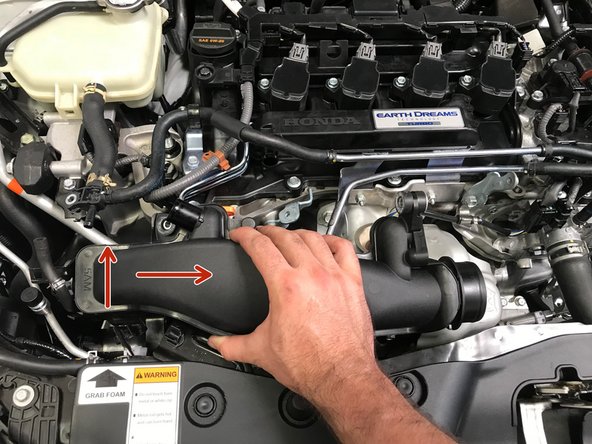

  21. The next process is to remove the Turbo Inlet Pipe (TIP) from the vehicle.
    • The next process is to remove the Turbo Inlet Pipe (TIP) from the vehicle.

    • We will first identify the hardware location and how to remove without losing the hardware in the engine bay

    • Second, we will show step by step images of physically removing the TIP for PDF users and a quick video for mobile users

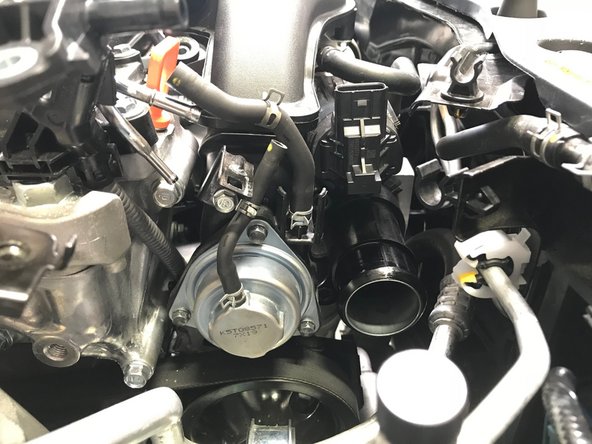

  22. Locating the mounting hardware on the TIP can be difficult.  Please see the second image for clear identification The hardware circled in red are bolts.  The hardware circled in orange is a nut on a stud
    • Locating the mounting hardware on the TIP can be difficult. Please see the second image for clear identification

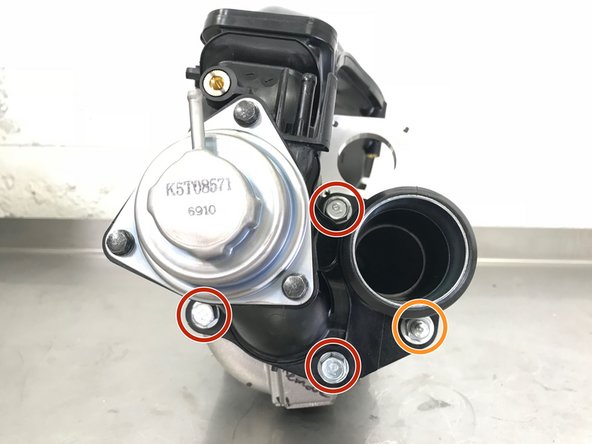

    • The hardware circled in red are bolts. The hardware circled in orange is a nut on a stud

    • Use a 12mm socket, extension & ratchet to loosen the three (3) bolts

    • Use a 12mm socket, extension & ratchet to loosen one (1) nut

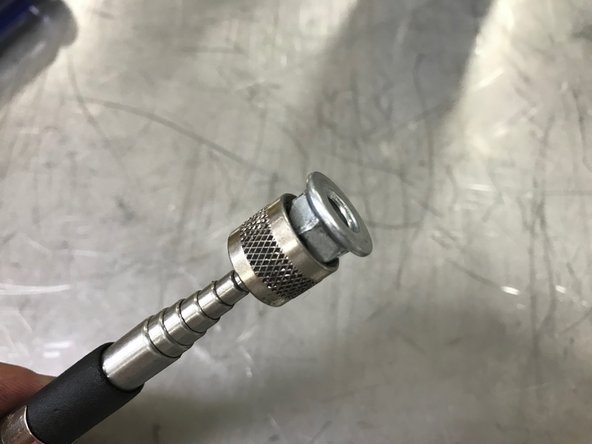

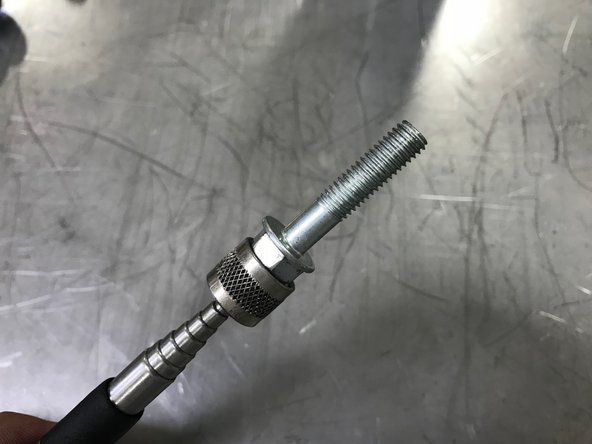

    • With the bolts loose, but not removed, use the magnet on a stick to remove the bolts from the TIP

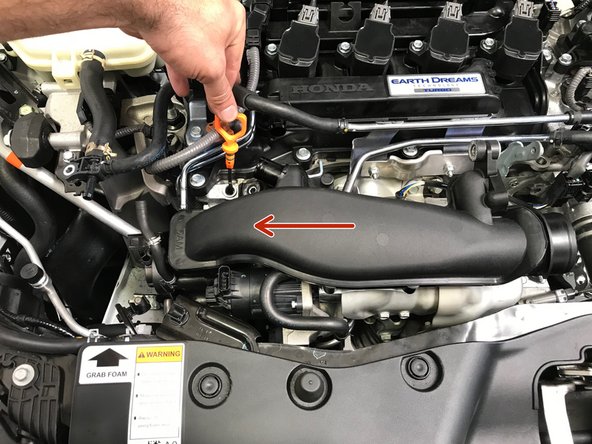

  23. Mobile Users proceed to Step 24 for video tutorial Pull the oil dip stick out a couple inches and flex out of way Move the TIP towards the passenger side of the vehicle past the oil dip stick
    • Mobile Users proceed to Step 24 for video tutorial

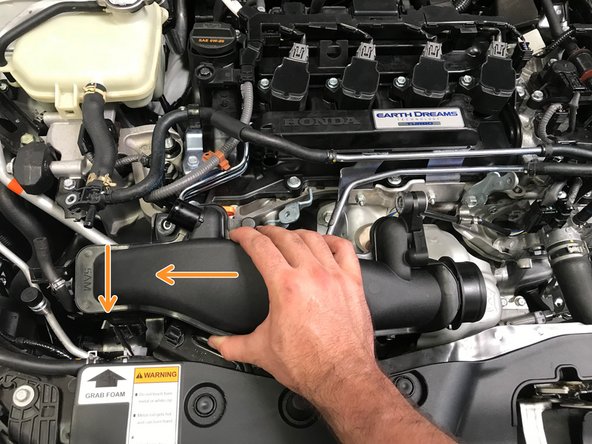

    • Pull the oil dip stick out a couple inches and flex out of way

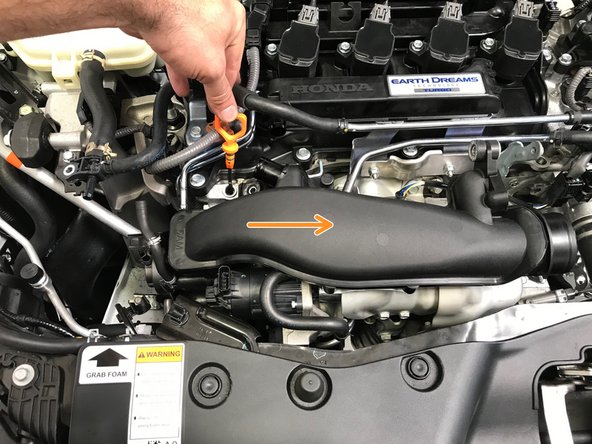

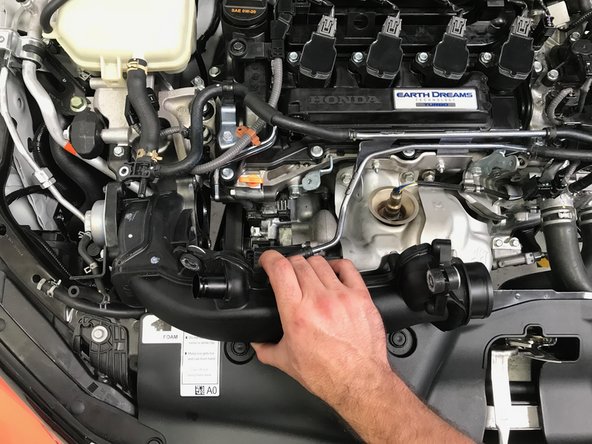

    • Move the TIP towards the passenger side of the vehicle past the oil dip stick

    • Reinstall the oil dip stick

    • Move the TIP further towards the passenger side of the vehicle and begin to rotate the top of the TIP towards the front of the vehicle

    • Continue the rotation of the TIP while moving the TIP up and out of the engine bay

    • Pull the oil dip stick out a couple inches and flex out of way

    • Move the TIP towards the passenger side of the vehicle past the oil dip stick

    • Reinstall the oil dip stick

    • Move the TIP further towards the passenger side of the vehicle and begin to rotate the top top of the TIP towards the front of the vehicle

    • Continue the rotation of the TIP while moving the TIP up and out of the engine bay

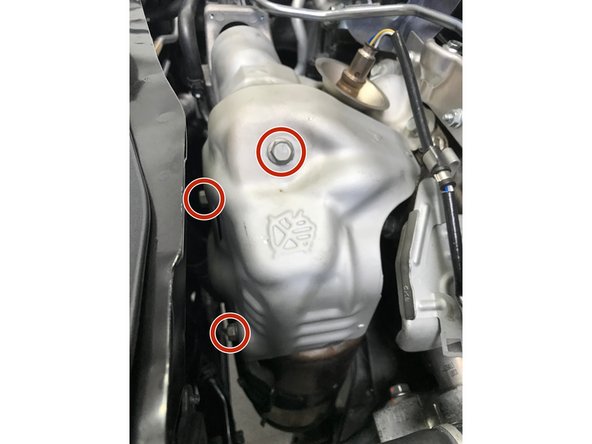

  24. Verify that the heat shield is not hot.  If hot allow the vehicle to cool before proceeding
    • Verify that the heat shield is not hot. If hot allow the vehicle to cool before proceeding

    • Use a 12mm wrench to remove the three (3) 12mm bolts

    • Remove the heat shield from the engine bay

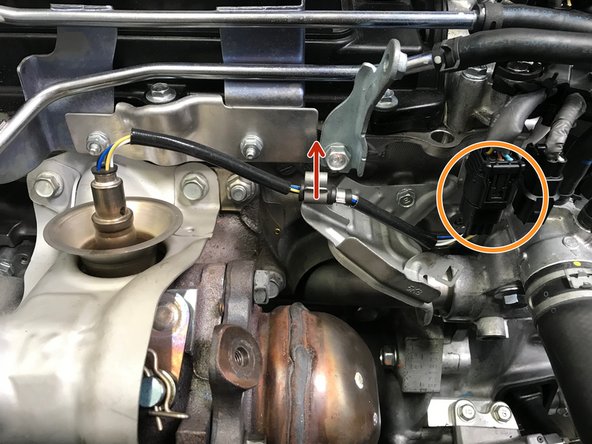

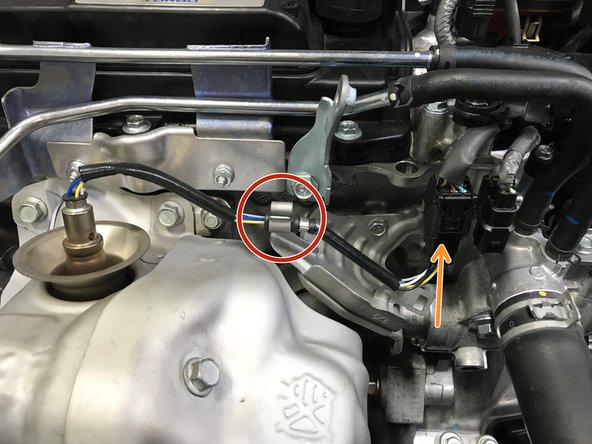

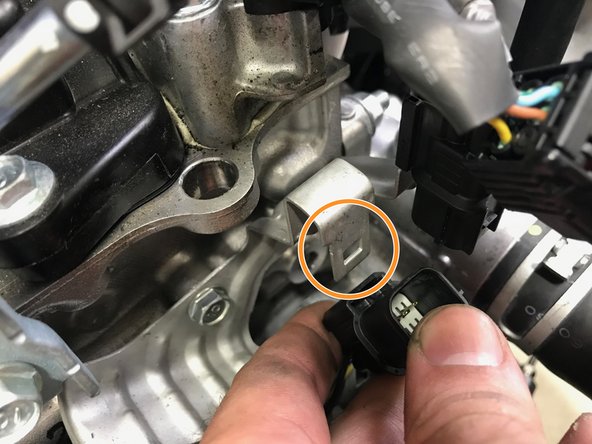

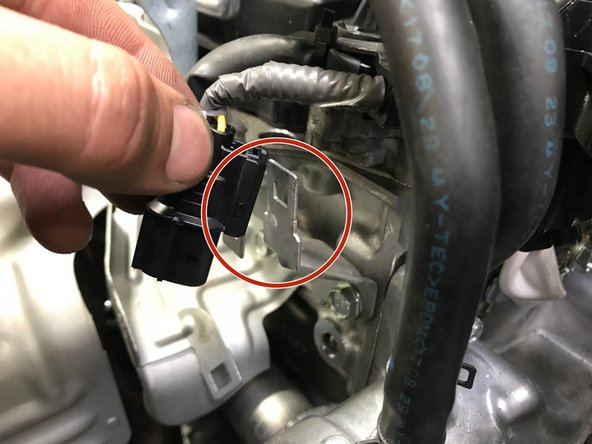

  25. Pull the wire out of the bracket as shown with the red arrow Disconnect the wiring circled in orange Press a tab on the back of the wiring connection and pull down off the bracket as shown in second image
    • Pull the wire out of the bracket as shown with the red arrow

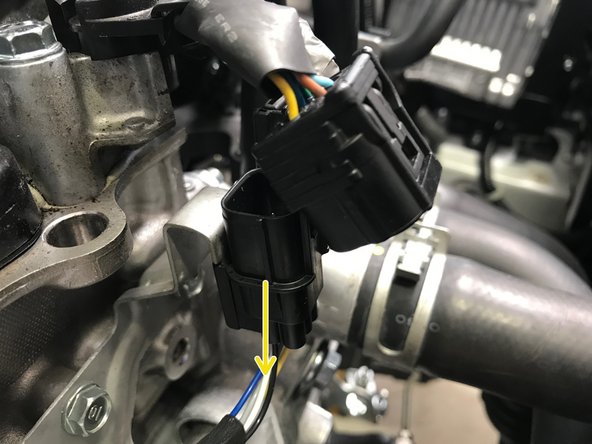

    • Disconnect the wiring circled in orange

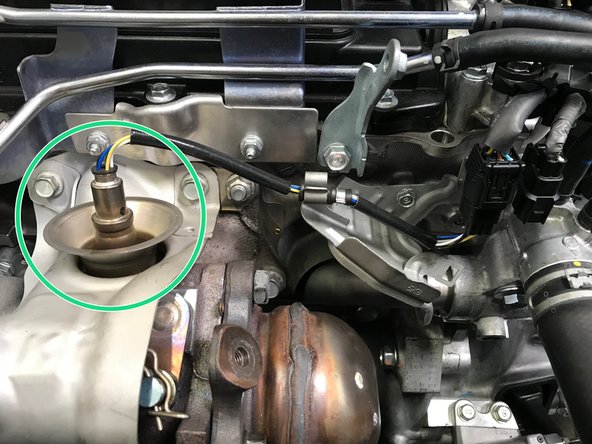

    • Press a tab on the back of the wiring connection and pull down off the bracket as shown in second image

    • Use the O2 sensor socket and ratchet to remove the O2 sensor

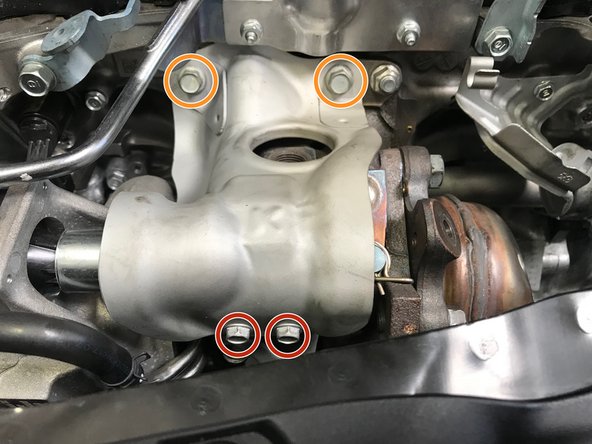

  26. Use a 10mm wrench to remove the two (2) 10mm bolts
    • Use a 10mm wrench to remove the two (2) 10mm bolts

    • Use a 12mm socket & ratchet to remove the two (2) 12mm bolts

    • Remove the heat shield from the turbo

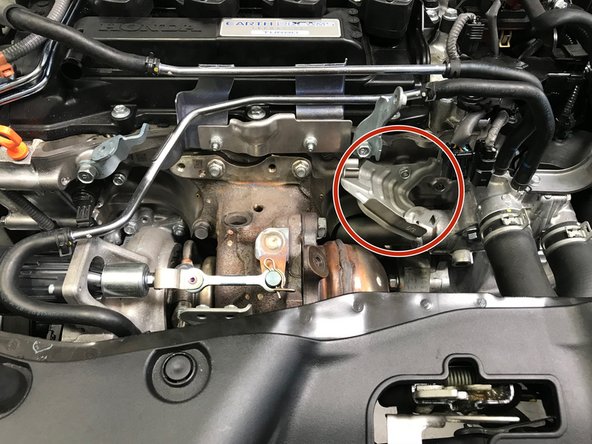

  27. Locate the wiring bracket to the driver's side of the turbo Use a 10mm socket & ratchet to remove the two (2) 10mm bolts
    • Locate the wiring bracket to the driver's side of the turbo

    • Use a 10mm socket & ratchet to remove the two (2) 10mm bolts

    • Remove the bracket from the vehicle

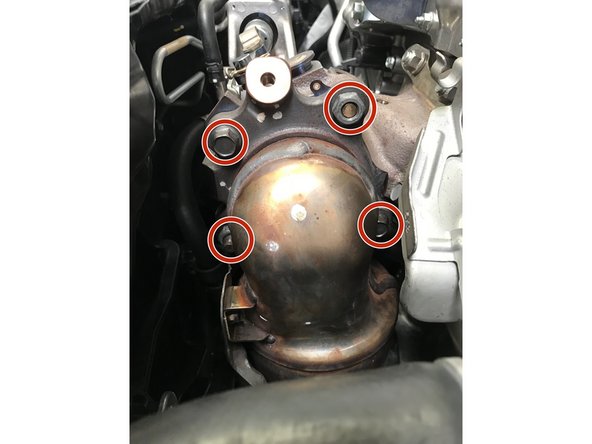

  28. It may be necessary to spray the studs/bolts with a penetrating lubricant before removal.  Apply lubricant if needed and let sit for a few minutes then attempt removal Use a 14mm socket & ratchet to remove the two (2) nuts and two (2) bolts
    • It may be necessary to spray the studs/bolts with a penetrating lubricant before removal. Apply lubricant if needed and let sit for a few minutes then attempt removal

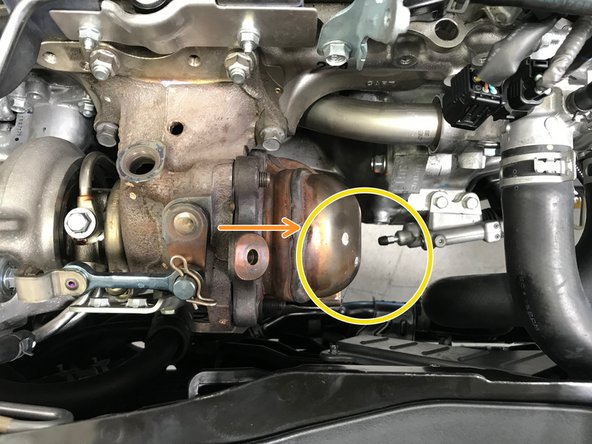

    • Use a 14mm socket & ratchet to remove the two (2) nuts and two (2) bolts

    • Move the downpipe off the studs towards the driver's side

    • Lower the downpipe straight down through the opening below

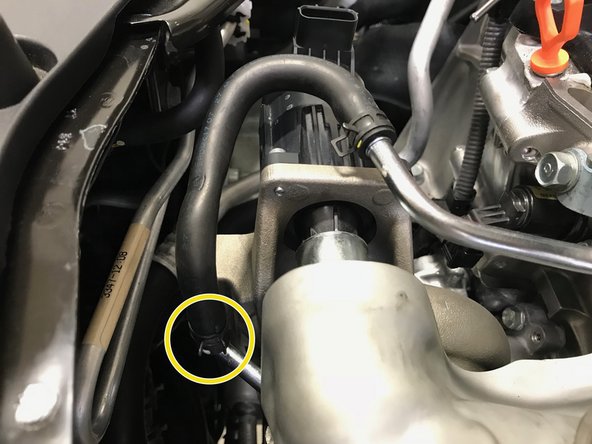

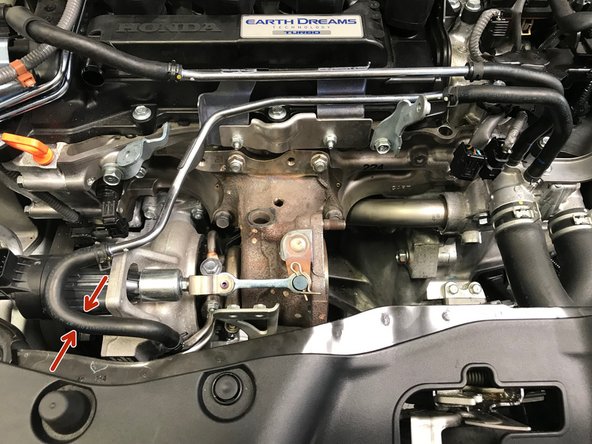

  29. Vise grips/clamps can damage the hose if they set too tight.  Setup the vise grips/clamp to squeeze the hose just enough to keep the coolant from leaking Use small vise grips/clamp to pinch the upper coolant hose on the turbo in the area indicated by the red arrows
    • Vise grips/clamps can damage the hose if they set too tight. Setup the vise grips/clamp to squeeze the hose just enough to keep the coolant from leaking

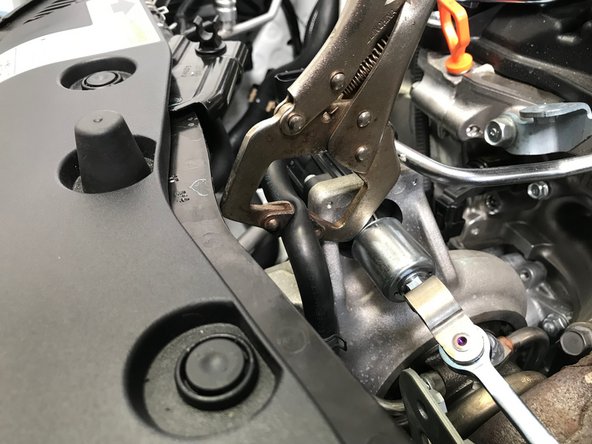

    • Use small vise grips/clamp to pinch the upper coolant hose on the turbo in the area indicated by the red arrows

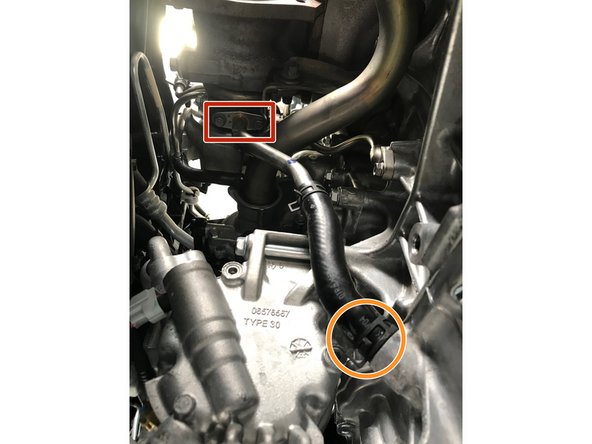

  30. Use a 10mm socket & ratchet to remove the two (2) 10mm bolts that attach the oil drain tube to the bottom of the turbo

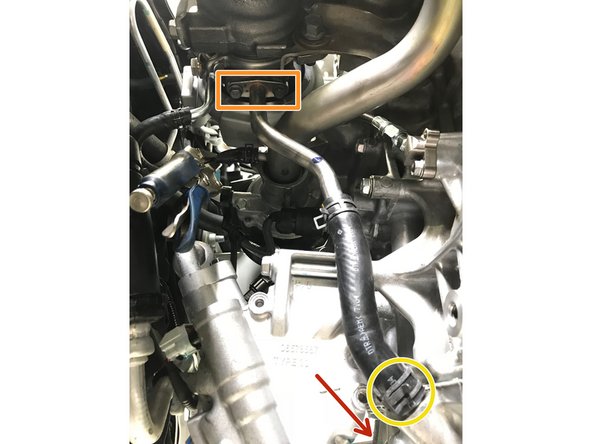

    • Use a 10mm socket & ratchet to remove the two (2) 10mm bolts that attach the oil drain tube to the bottom of the turbo

    • There is a small black metal gasket between the oil drain tube and the turbo. Do not loose or damage it, it will be reused

    • Use pliers to loosen the spring clamp. Slide the spring clamp up the rubber hose

    • Remove the oil drain tube from the vehicle

    • A small amount of oil may spill out of the drain tube upon removal

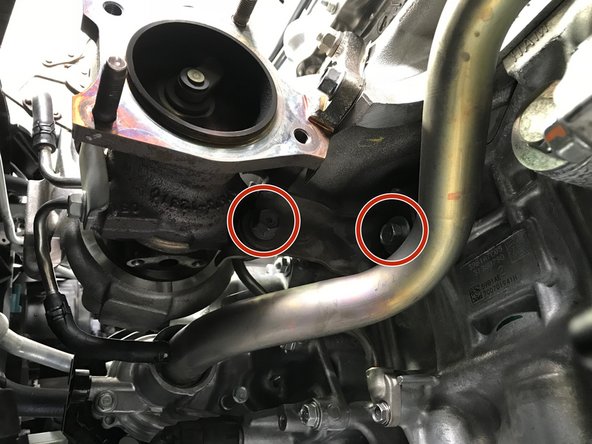

  31. Use a 14mm socket & ratchet to remove the two (2) 14mm bolts holding the turbo support bracket

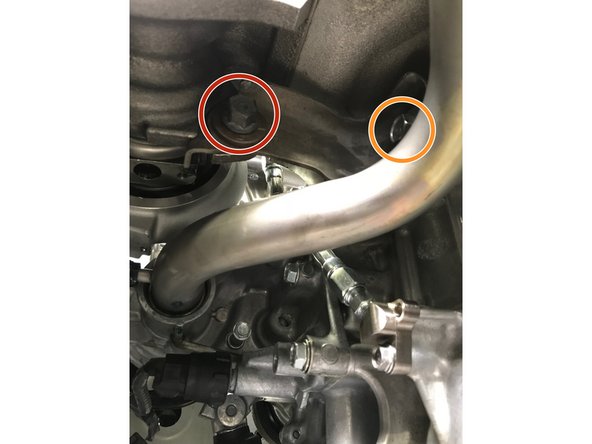

    • Use a 14mm socket & ratchet to remove the two (2) 14mm bolts holding the turbo support bracket

    • The two bolts are different lengths. The long bolt is used on the turbo and the short block is used on the engine block

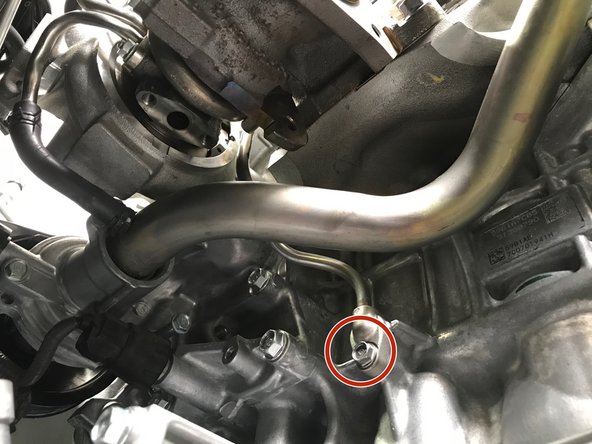

  32. Use a 10mm socket & ratchet to remove the one (1) 10mm bolt holding the lower portion of the oil feed tube
    • Use a 10mm socket & ratchet to remove the one (1) 10mm bolt holding the lower portion of the oil feed tube

    • A small amount of oil may spill out of the oil feed tube upon removal

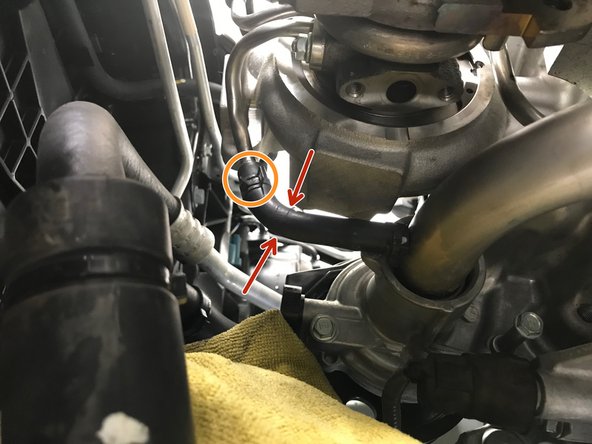

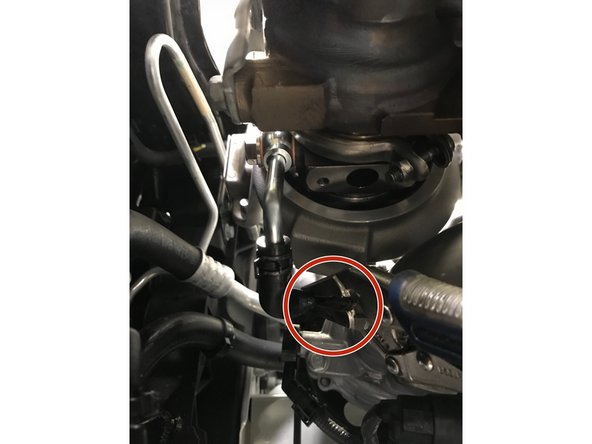

  33. Vise grips/clamps can damage the hose if they are too tight.  Setup the vise grips/clamp to squeeze the hose just enough to keep the coolant from leaking
    • Vise grips/clamps can damage the hose if they are too tight. Setup the vise grips/clamp to squeeze the hose just enough to keep the coolant from leaking

    • Use small vise grips/clamp to pinch the lower coolant hose on the turbo in the area shown with red arrows

    • Use pliers to loosen the spring clamp. Slide the spring clamp towards the center of the rubber hose

    • Pull the rubber hose off the turbo coolant tube

    • Some coolant will spill out of the turbo and rubber hose upon removal

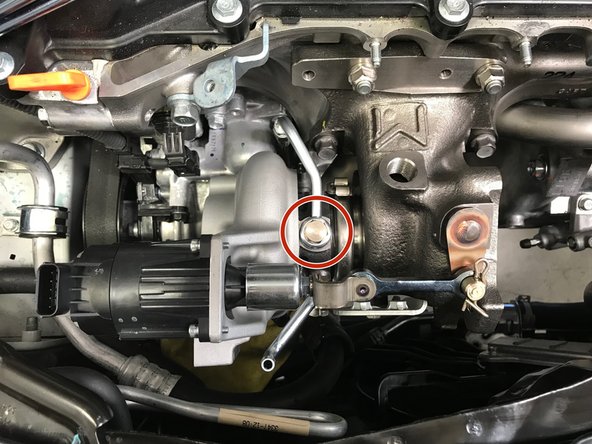

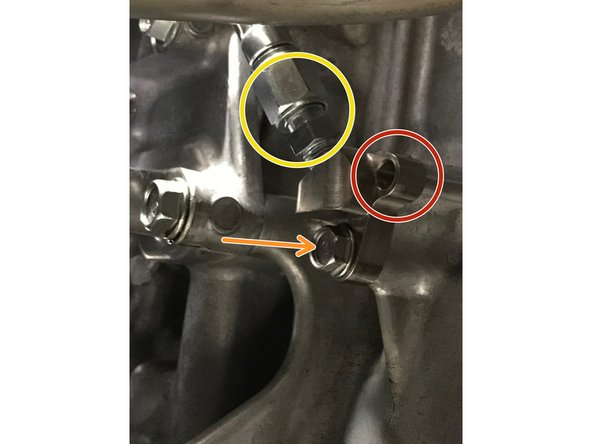

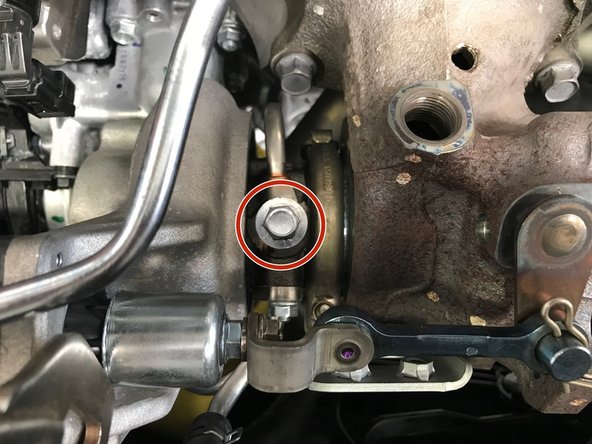

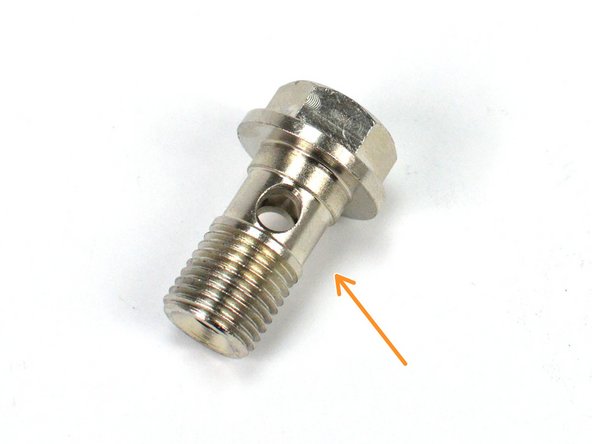

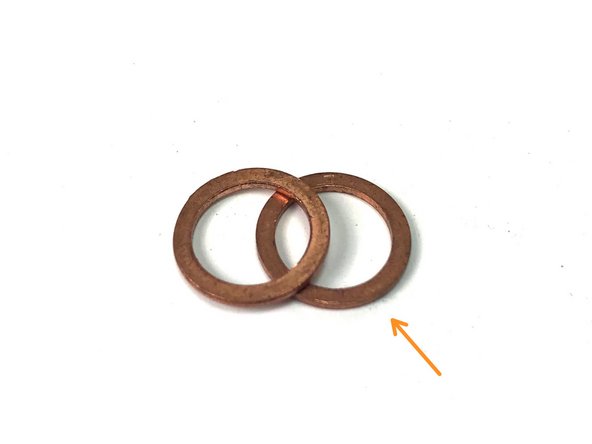

  34. Use a 12mm socket, extension, & ratchet to remove the oil feed banjo bolt
    • Use a 12mm socket, extension, & ratchet to remove the oil feed banjo bolt

    • Remove the entire oil feed tube and banjo bolt for the turbo

  35. Use pliers to loosen the spring clamp.  Slide the spring clamp up the rubber hose

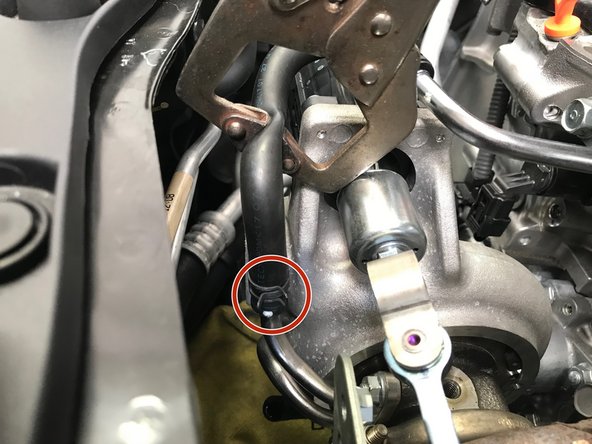

    • Use pliers to loosen the spring clamp. Slide the spring clamp up the rubber hose

    • Pull the rubber hose off the turbo tube

    • More coolant will spill out of the lower turbo coolant tube

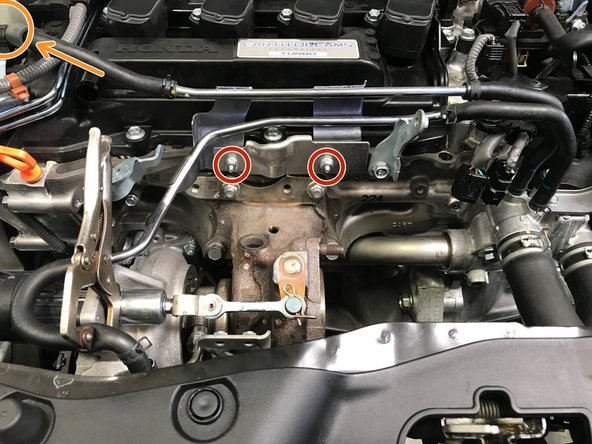

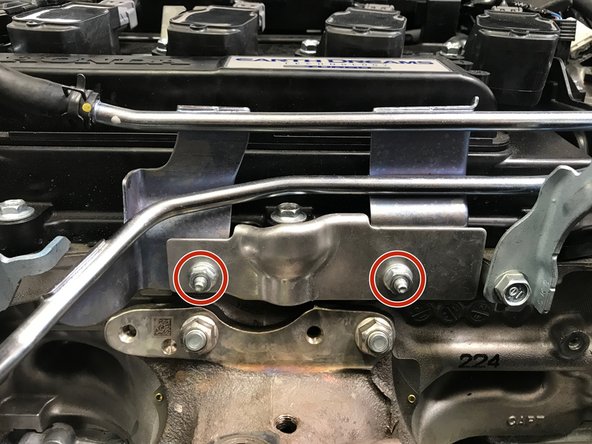

  36. Use a 10mm socket & ratchet to remove two (2) 10mm nuts holding the bracket Use a flat head screwdriver to open the plastic clip holding the rearward coolant hose, as shown in the third image Lift the whole assembly up and set it on the valve cover out of the way
    • Use a 10mm socket & ratchet to remove two (2) 10mm nuts holding the bracket

    • Use a flat head screwdriver to open the plastic clip holding the rearward coolant hose, as shown in the third image

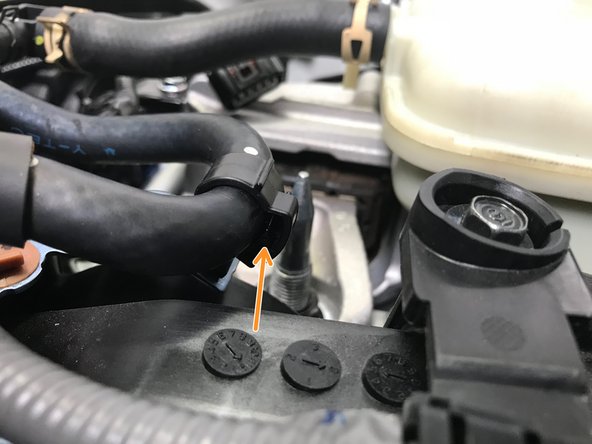

    • Lift the whole assembly up and set it on the valve cover out of the way

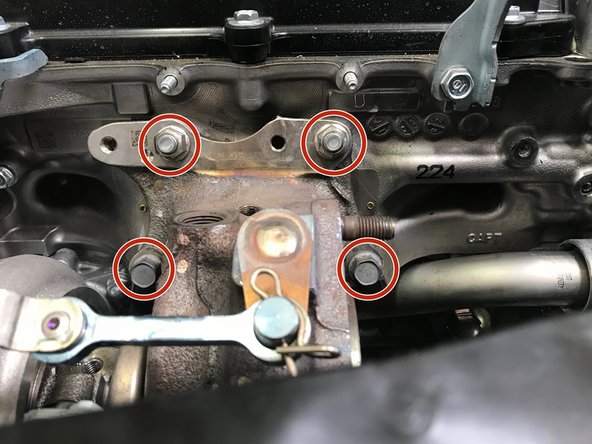

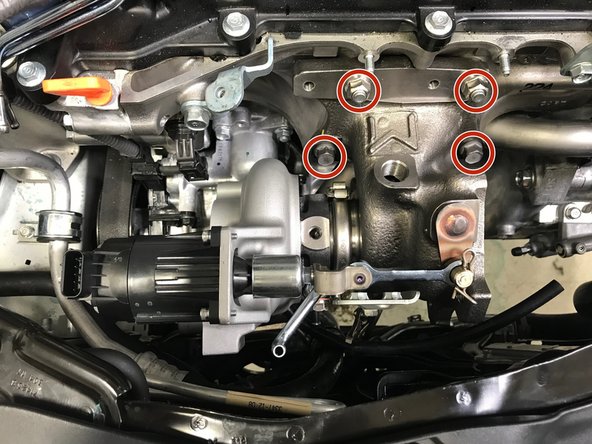

  37. Use a 14mm socket, extension, & ratchet  to remove the two (2) nuts and two (2) bolts holding the turbo to the engine
    • Use a 14mm socket, extension, & ratchet to remove the two (2) nuts and two (2) bolts holding the turbo to the engine

    • These nuts and bolts will be reused for installation

  38. Mobile Users please proceed to the next step for a video tutorial

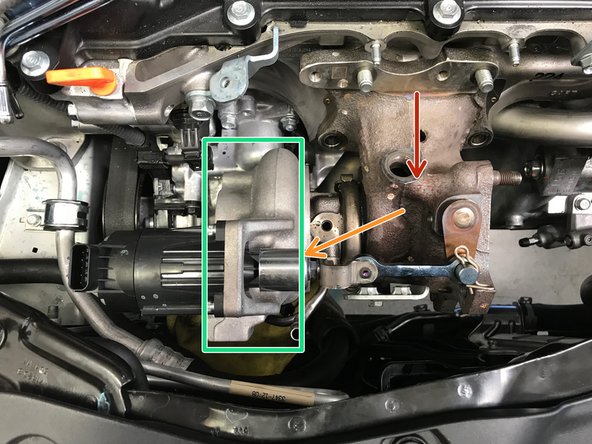

    • Mobile Users please proceed to the next step for a video tutorial

    • Pull the turbo off the studs in the engine block

    • Move the turbo slightly towards the passenger side of the vehicle

    • Raise the compressor side of the turbo up first then remove the whole turbo from the engine bay

    • Pull the turbo off the studs in the engine block

    • Move the turbo slightly towards the passenger side of the vehicle

    • Raise the compressor side of the turbo up first then remove the whole turbo from the engine bay

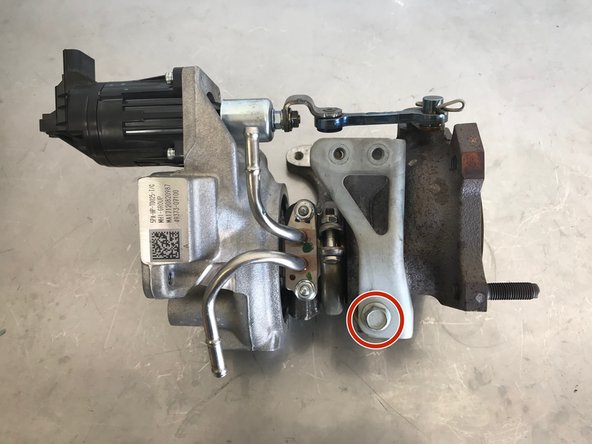

  39. Use a 12mm wrench to remove the bolt holding the bracket shown
    • Use a 12mm wrench to remove the bolt holding the bracket shown

    • Keep the bolt and bracket together as they will be reused for installation

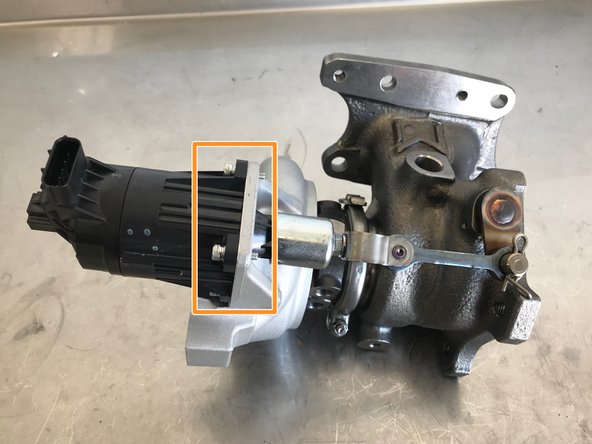

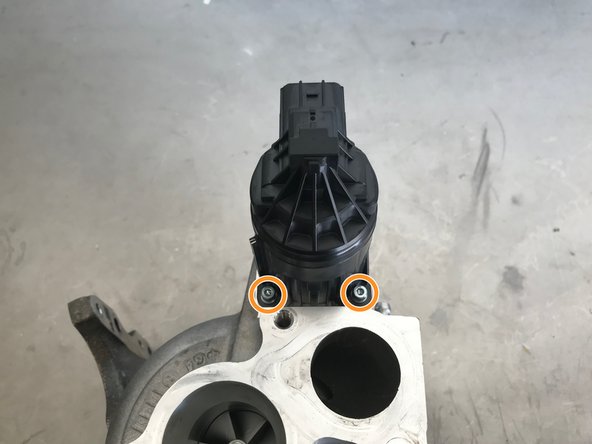

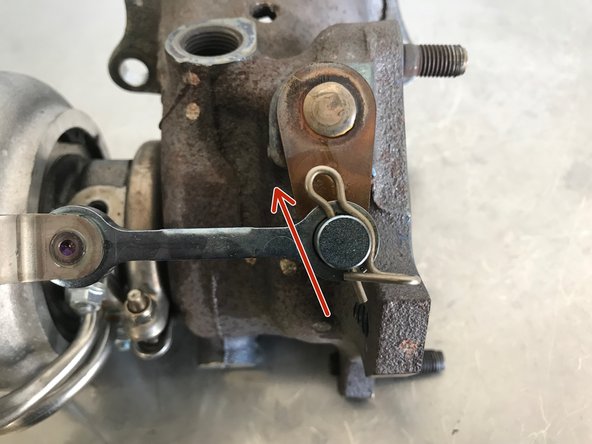

  40. Remove the cotter pin from the turbo This can fly off unexpectedly if not careful Use a 3mm Allen to remove the four (4) socket caps screws holding the WGA
    • Remove the cotter pin from the turbo

    • This can fly off unexpectedly if not careful

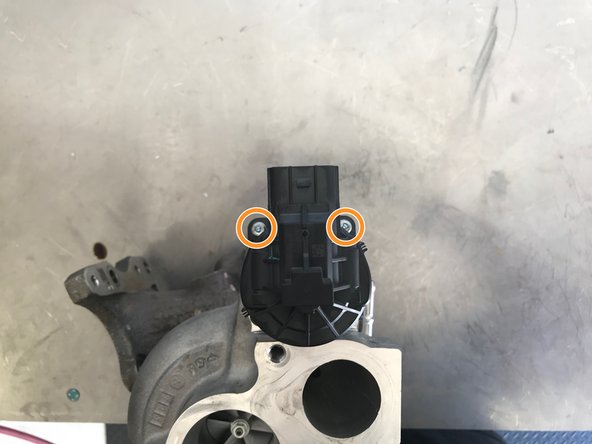

    • Use a 3mm Allen to remove the four (4) socket caps screws holding the WGA

    • Remove the WGA from the OE turbo

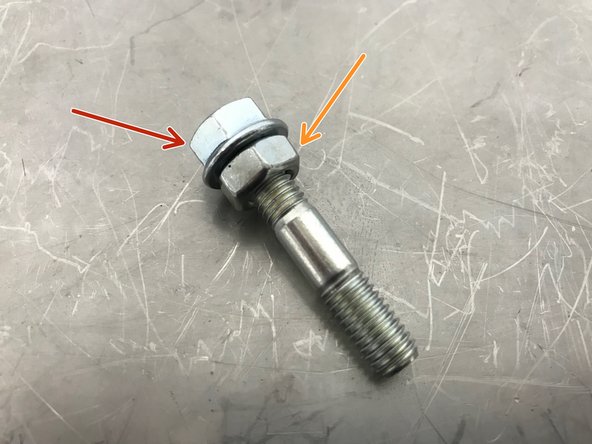

  41. Thread on the provided M8x1.25 nut onto the stud Thread on the OE flange nut onto the turbo stud on top of the M8 nut Use a 13mm and 12mm wrench to tighten the two nuts onto each other
    • Thread on the provided M8x1.25 nut onto the stud

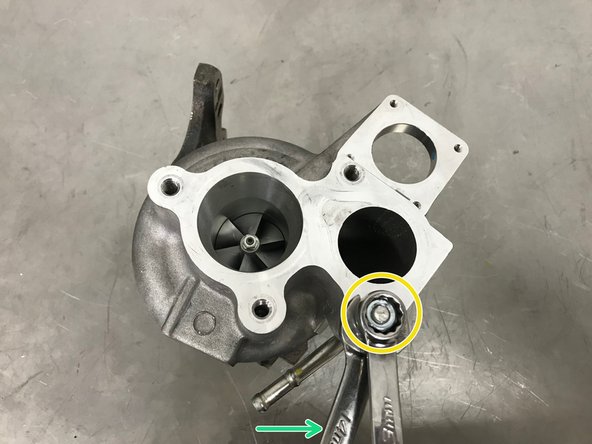

    • Thread on the OE flange nut onto the turbo stud on top of the M8 nut

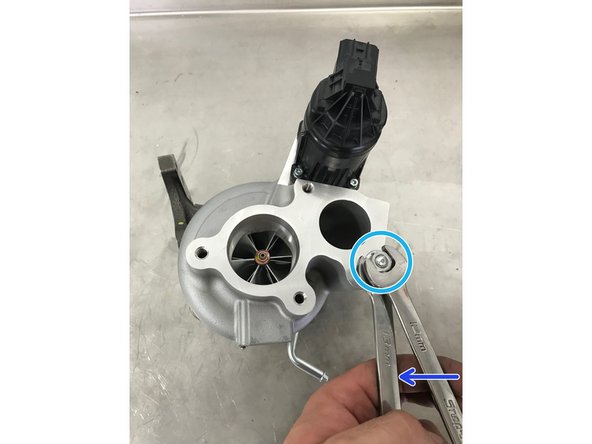

    • Use a 13mm and 12mm wrench to tighten the two nuts onto each other

    • Using the wrench on the lower nut, "un-thread" the nut. This should begin un-threading the stud from the compressor housing

    • Repeat this process in reverse to install the stud on the W1 turbo

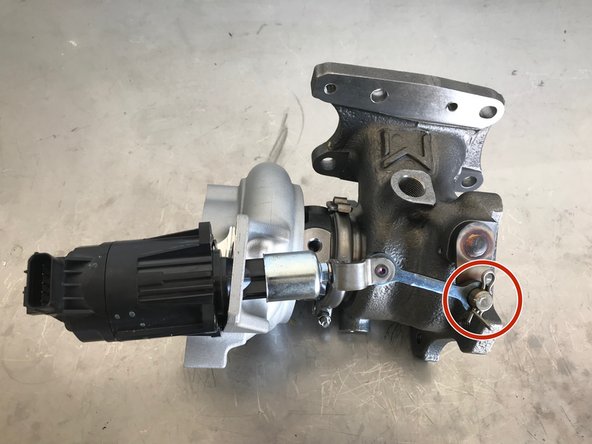

  42. Install the WGA through the compressor housing and attach the WGA rod to the waste gate arm Install the cotter pin
    • Install the WGA through the compressor housing and attach the WGA rod to the waste gate arm

    • Install the cotter pin

    • Verify that the WGA wiring connection is pointed up. Install the four (4) 3mm Allen socket cap screw and tighten to snug.

    • Do not over-tighten the 3mm Allen screws. Hand snug is sufficient

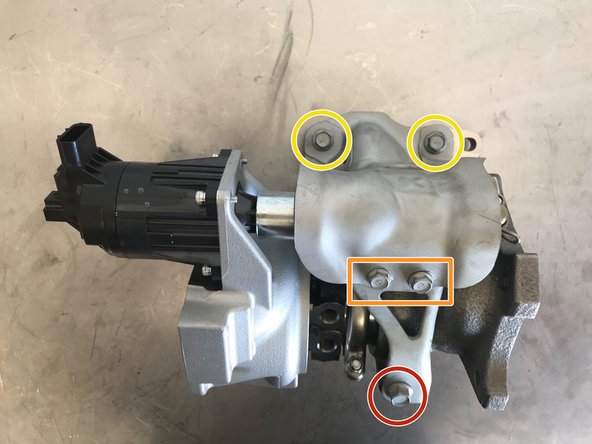

  43. In order to correctly position the turbo heat shield bracket we need to install the heat shield for alignment. The heat shield will be removed once the bracket is positioned and torqued
    • In order to correctly position the turbo heat shield bracket we need to install the heat shield for alignment. The heat shield will be removed once the bracket is positioned and torqued

    • Install the bracket removed a few steps ago. Use the OE bolt and hand tighten

    • Install the heat shield and the two (2) 10mm bolts hand tight

    • Install the two (2) 12mm bolts hand tight

    • With the bracket now correctly aligned, torque the 12mm bracket bolt to 15-19 ft-lbs

    • Remove the heat shield and bolts holding the heat sheild

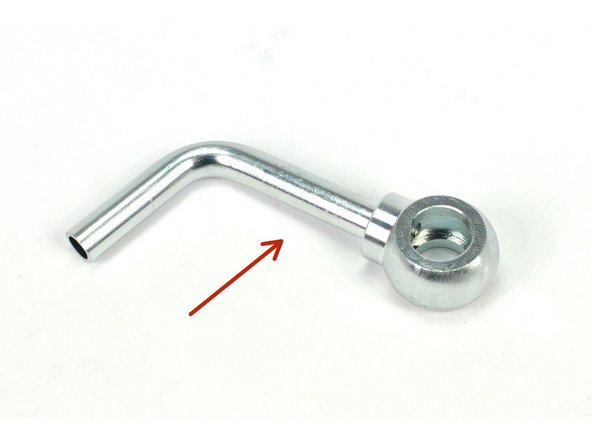

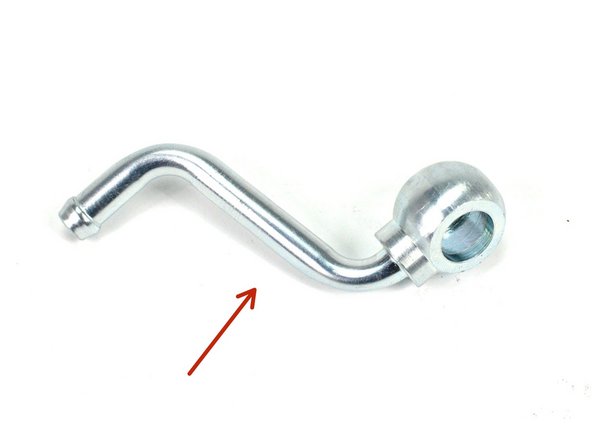

  44. Locate the provided Upper Coolant Pipe, M12 Banjo Bolt, and two (2) M12 Copper Crush Washers Upper Coolant Pipe M12 Coolant Banjo Bolt
    • Locate the provided Upper Coolant Pipe, M12 Banjo Bolt, and two (2) M12 Copper Crush Washers

    • Upper Coolant Pipe

    • M12 Coolant Banjo Bolt

    • M12 Copper Crush Washer

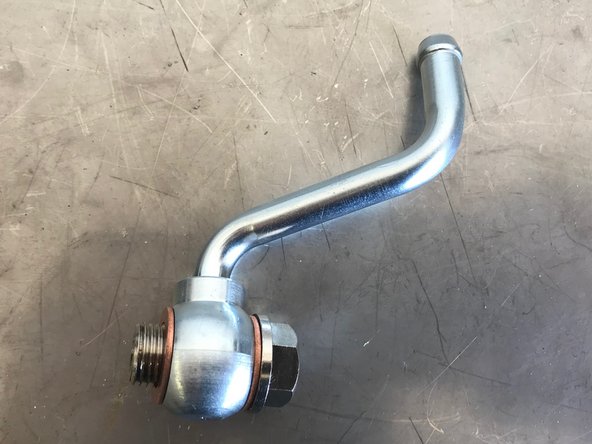

  45. Assemble the upper coolant pipe as shown.  There should be one crush washer on each side of the coolant pipe bolt connection Install the upper coolant pipe on the turbo as shown.  Torque to 21-24 ft-lbs
    • Assemble the upper coolant pipe as shown. There should be one crush washer on each side of the coolant pipe bolt connection

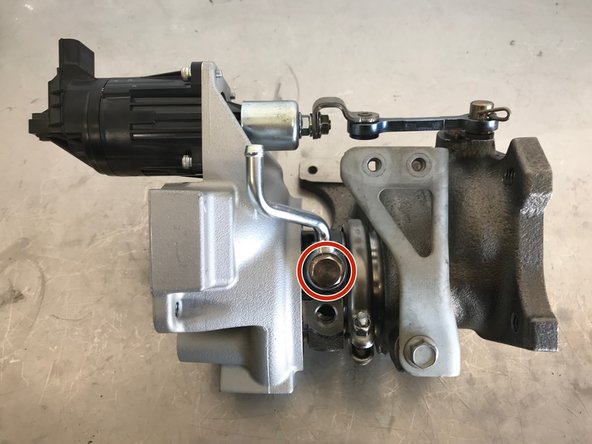

    • Install the upper coolant pipe on the turbo as shown. Torque to 21-24 ft-lbs

  46. Locate the provided Lower Coolant Pipe, M12 Banjo Bolt, and two (2) M12 Copper Crush Washers Lower Coolant Pipe M12 Coolant Banjo Bolt
    • Locate the provided Lower Coolant Pipe, M12 Banjo Bolt, and two (2) M12 Copper Crush Washers

    • Lower Coolant Pipe

    • M12 Coolant Banjo Bolt

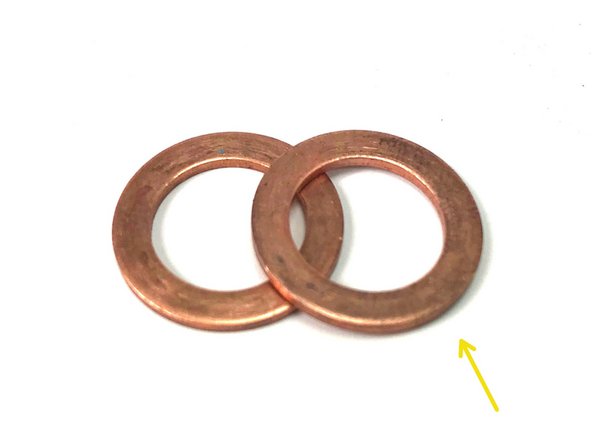

    • M12 Copper Crush Washer

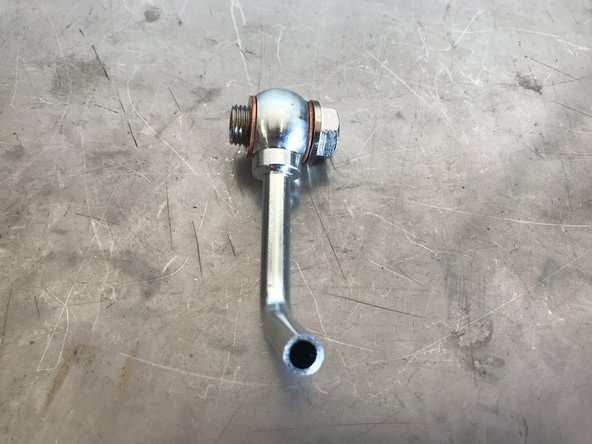

  47. Assemble the lower coolant pipe as shown.  There should be one crush washer on each side of the coolant pipe bolt connection Install the lower coolant pipe on the turbo as shown.  Torque to 21-24 ft-lbs
    • Assemble the lower coolant pipe as shown. There should be one crush washer on each side of the coolant pipe bolt connection

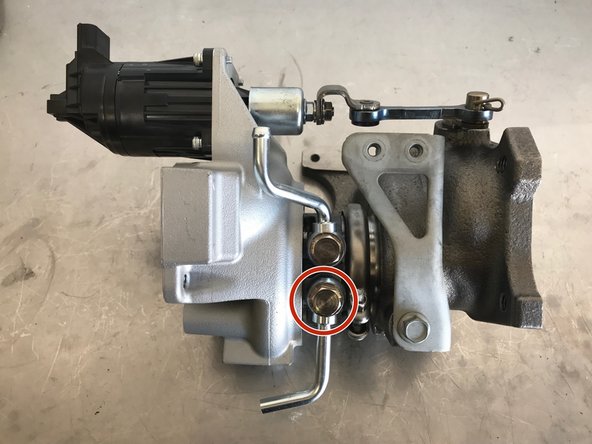

    • Install the lower coolant pipe on the turbo as shown. Torque to 21-24 ft-lbs

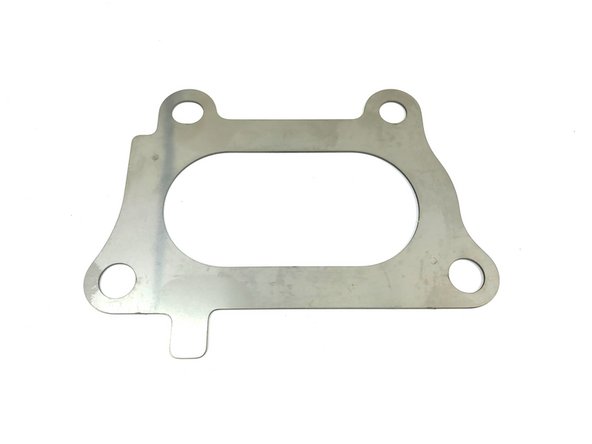

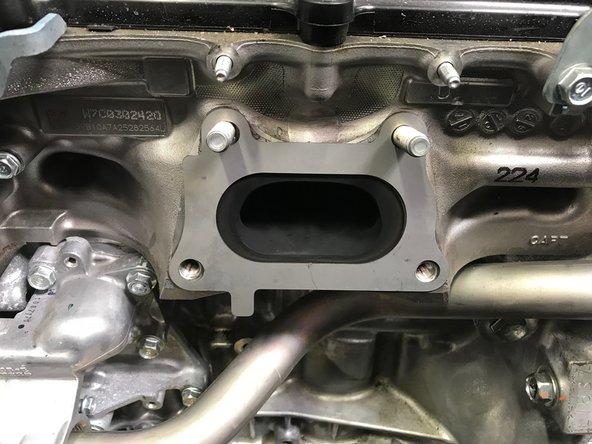

  48. Locate the provided turbine inlet gasket and install as shown Locate the provided turbine inlet gasket and install as shown
    • Locate the provided turbine inlet gasket and install as shown

  49. Install the Turbo onto the engine as shown in the reverse order of removal.
    • Install the Turbo onto the engine as shown in the reverse order of removal.

    • Use a 14mm socket and torque nuts and bolts to 42-48 ft-lbs

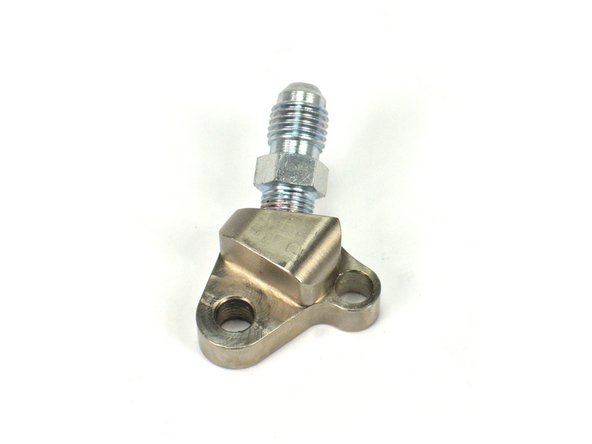

  50. Locate the provided oil feed block fitting Locate the OE oil feed tube.  Use a small flat head screwdriver to remove the O-ring/screen from the OE oil feed tube Be careful to not damage the O-ring during removal and installation
    • Locate the provided oil feed block fitting

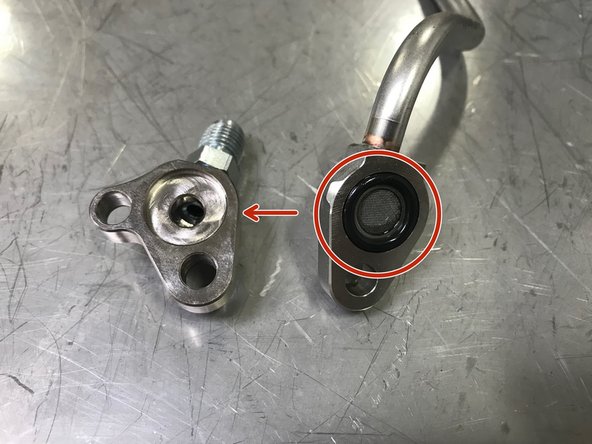

    • Locate the OE oil feed tube. Use a small flat head screwdriver to remove the O-ring/screen from the OE oil feed tube

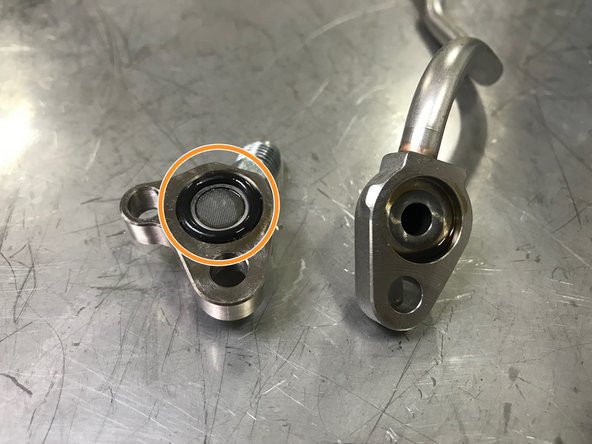

    • Be careful to not damage the O-ring during removal and installation

    • Install the O-ring/screen into the oil feed block fitting as shown

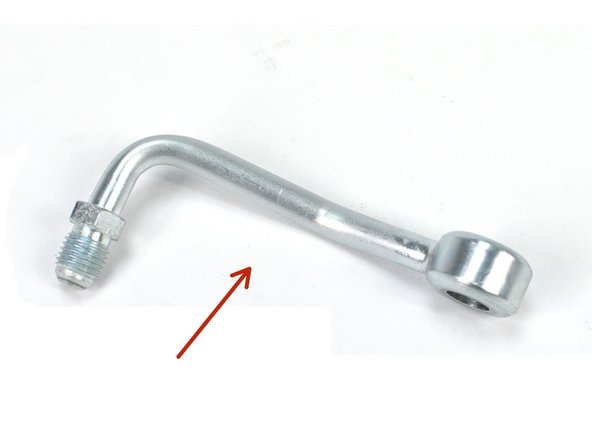

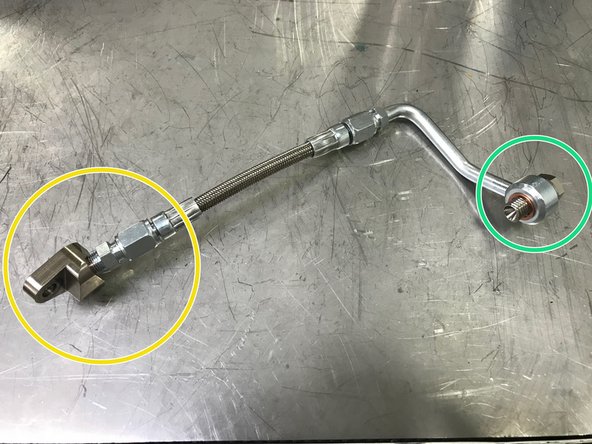

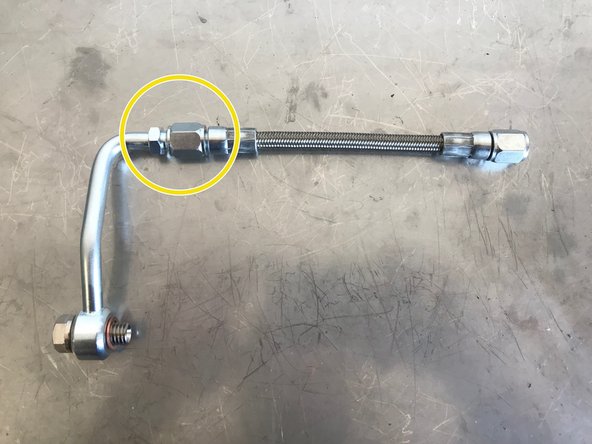

  51. Locate the provided oil feed pipe and oil feed braided hose Oil Feed Pipe Oil Feed Braided Hose
    • Locate the provided oil feed pipe and oil feed braided hose

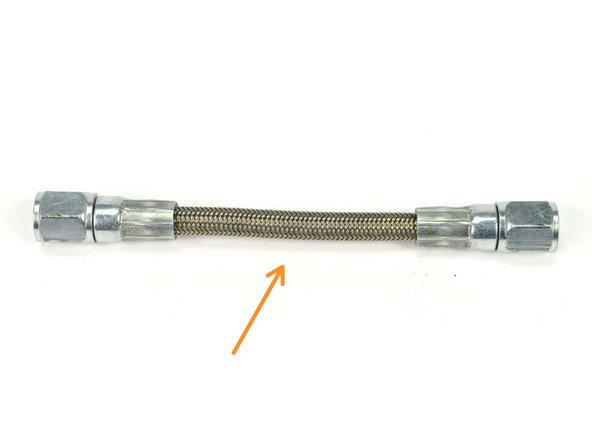

    • Oil Feed Pipe

    • Oil Feed Braided Hose

    • Attach the oil feed pipe and oil feed braided hose

    • Use a 12mm and 14mm wrench to tighten the pipe and hose. Hand tighten then use wrenches to tighten an extra 1/8 - 1/4 turn

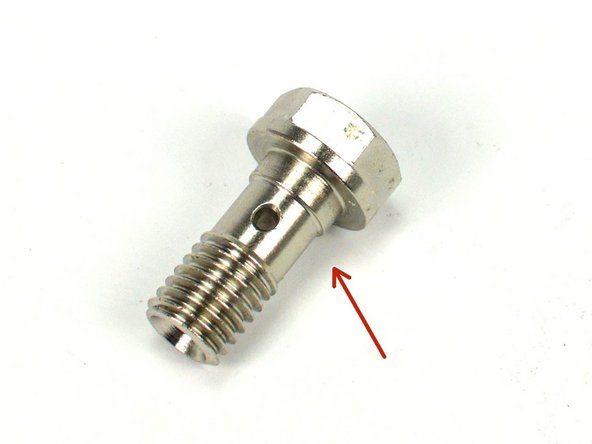

  52. Locate the provided oil feed banjo bolt and two (2) M10 copper crush washers M10 Oil Feed Banjo Bolt M10 Copper Crush washer
    • Locate the provided oil feed banjo bolt and two (2) M10 copper crush washers

    • M10 Oil Feed Banjo Bolt

    • M10 Copper Crush washer

    • Install the oil feed block fitting that has the O-ring screen installed. Hand tighten the oil feed block fitting, do not fully tighten yet

    • Install the oil feed banjo bolt and crush washers as shown. There should be one crush washer on each side of the oil feed bolt connection

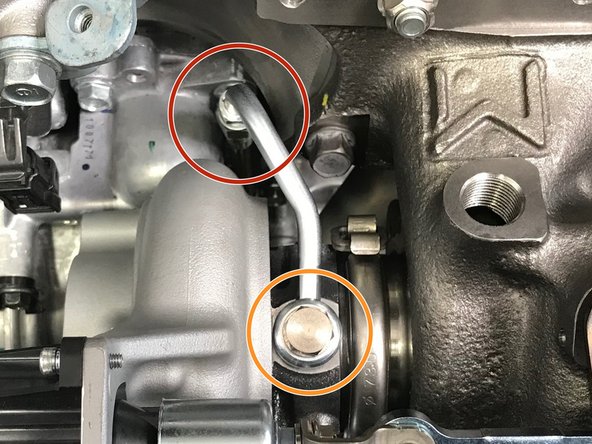

  53. Install the assembled oil feed line onto the turbo.
    • Install the assembled oil feed line onto the turbo.

    • Route the oil feed block fitting and braided hose as shown

    • Hand tighten the oil feed banjo bolt into the turbo as shown

    • Verify that the upper and lower copper crush washers are on the oil feed banjo bolt

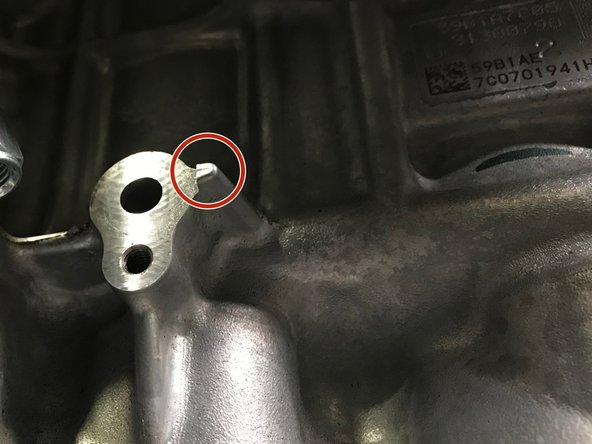

  54. Locate the oil feed block connection location shown in the first image The small protrusion is critical and must align with the hole on the side of the oil feed block fitting
    • Locate the oil feed block connection location shown in the first image

    • The small protrusion is critical and must align with the hole on the side of the oil feed block fitting

    • Align the protrusion and the loop on the block fitting then install the OE 10mm bolt. Torque to 9-11 ft-lbs

    • Use a 12mm and 14mm wrench to tighten the block fitting and hose. Hand tighten then use wrenches to tighten an extra 1/8 - 1/4 turn

  55. Use a 14mm socket and torque the oil feed banjo bolt to 12-14 ft-lbs Verify that the oil feed braided hose is not touching or rubbing any components. If touching is occurring loosen the oil feed banjo bolt and adjust the position
    • Use a 14mm socket and torque the oil feed banjo bolt to 12-14 ft-lbs

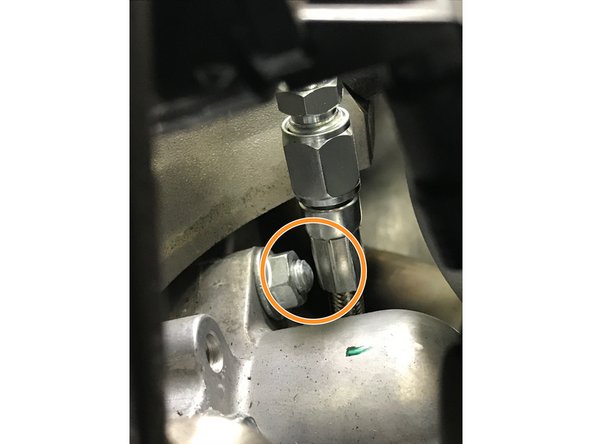

    • Verify that the oil feed braided hose is not touching or rubbing any components. If touching is occurring loosen the oil feed banjo bolt and adjust the position

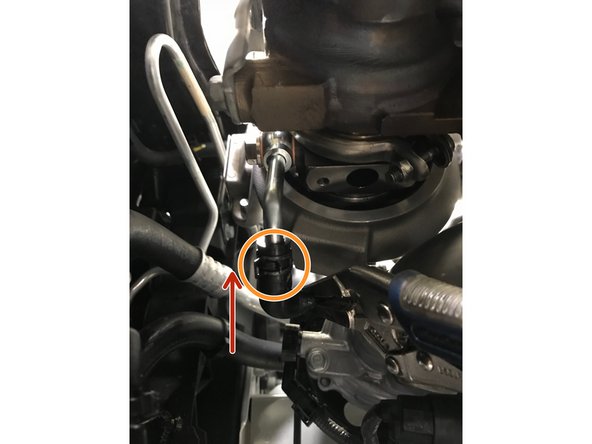

  56. Use pliers to remove the remaining spring clamp on the OE lower rubber coolant hose that is not installed on the engine currently.  Install the spring clamp on the provided rubber coolant hose that is installed on the engine currently
    • Use pliers to remove the remaining spring clamp on the OE lower rubber coolant hose that is not installed on the engine currently. Install the spring clamp on the provided rubber coolant hose that is installed on the engine currently

    • Push the coolant hose onto the lower coolant pipe

    • Use pliers to install the spring clamp at the end of the hose over the coolant pipe

    • Do NOT remove the vise grips yet, or coolant will spill out of the turbo upper coolant pipe

  57. Install the LONG 14mm bolt through the bracket into the turbo
    • Install the LONG 14mm bolt through the bracket into the turbo

    • Install the SHORT 14mm bolt through the bracket into the engine

    • Use a 14mm socket and torque wrench. Torque each to 38-42 ft-lbs

  58. Locate the OE oil drain pipe and OE oil drain pipe gasket
    • Locate the OE oil drain pipe and OE oil drain pipe gasket

    • Install the rubber hose onto the barbed pipe fitting on the engine block

    • Align the drain pipe flange and gasket with the holes on the underside of the turbo. Use a 10mm socket and torque wrench. Torque the two (2) 10mm bolts to 8-10 ft-lbs

    • Use pliers to install the spring clamp at the end of the rubber hose around the barbed pipe

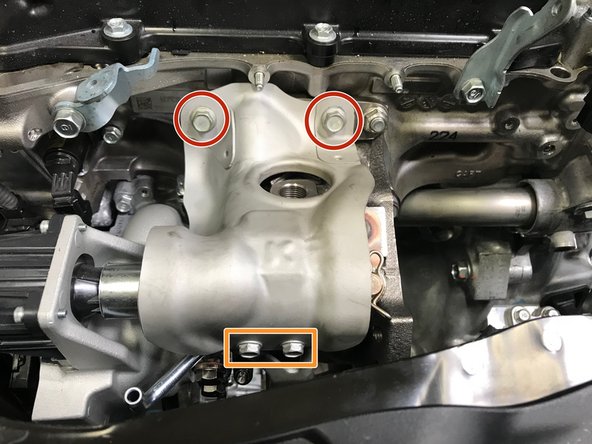

  59. Use a 12mm socket & torque wrench to install the two (2) 12mm bolt and torque to 15-18 ft-lbs
    • Use a 12mm socket & torque wrench to install the two (2) 12mm bolt and torque to 15-18 ft-lbs

    • Use a 10mm socket & torque wrench to install the two (2) 10mm bolt and torque to 8-10 ft-lbs

  60. Use the specialty O2 sensor socket to install the primary O2 sensor.  Torque to 30-33 ft-lbs
    • Use the specialty O2 sensor socket to install the primary O2 sensor. Torque to 30-33 ft-lbs

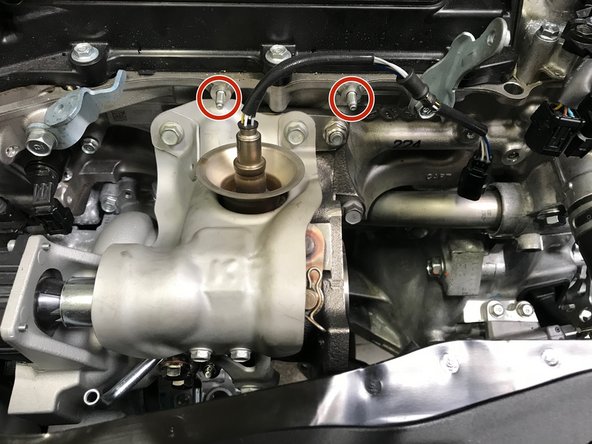

  61. Install the upper coolant hard lines support bracket and shield that was removed.  Use a 10mm socket & torque wrench to install the two (2) 10mm nuts and torque to 8-10 ft-lbs Push the rubber coolant hose onto the turbo upper coolant pipe Use pliers to install the spring clamp at the end of the coolant hose around the upper coolant pipe
    • Install the upper coolant hard lines support bracket and shield that was removed. Use a 10mm socket & torque wrench to install the two (2) 10mm nuts and torque to 8-10 ft-lbs

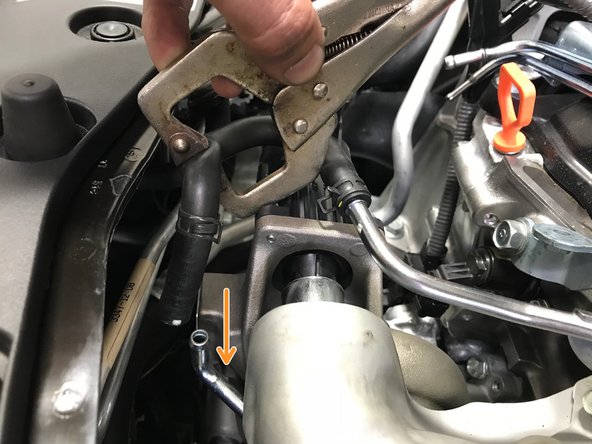

    • Push the rubber coolant hose onto the turbo upper coolant pipe

    • Use pliers to install the spring clamp at the end of the coolant hose around the upper coolant pipe

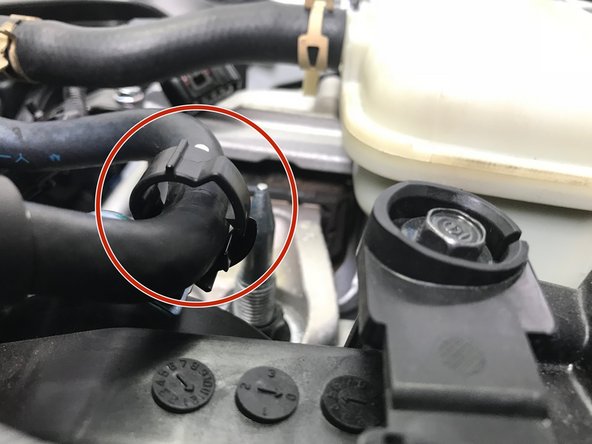

  62. Reinstall the plastic clip holding the upper coolant hard lines and rubber hose Reinstall the plastic clip holding the upper coolant hard lines and rubber hose
    • Reinstall the plastic clip holding the upper coolant hard lines and rubber hose

  63. Remove the vise grips from the lower coolant hose
    • Remove the vise grips from the lower coolant hose

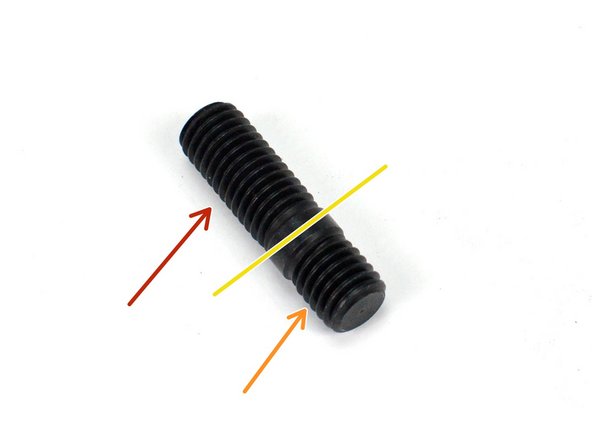

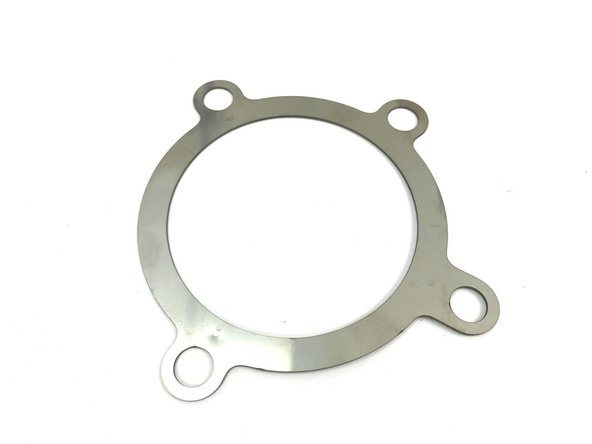

  64. Locate the provided turbine outlet gasket, four (4) M10 studs, and four (4) M10 crimp nuts The provided M10 studs have a short thread section and a long threaded section The short section of threads will be threaded into the turbo
    • Locate the provided turbine outlet gasket, four (4) M10 studs, and four (4) M10 crimp nuts

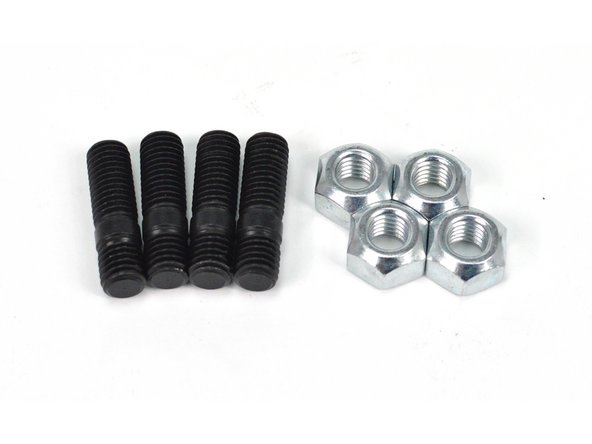

    • The provided M10 studs have a short thread section and a long threaded section

    • The short section of threads will be threaded into the turbo

    • The long section of threads protrudes out of the turbo to support the downpipe

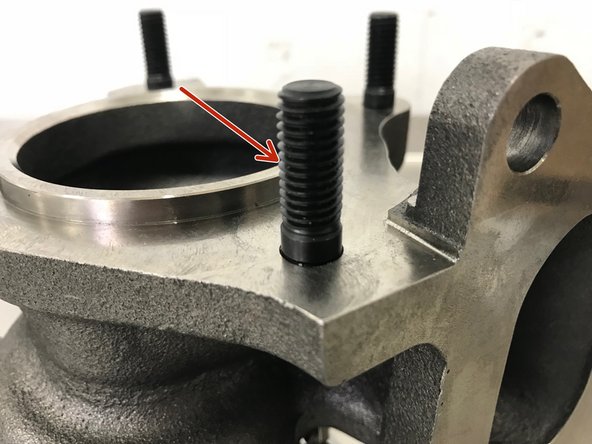

  65. (Shown on Bench for Clarity) By hand, install the four (4) M10 studs into the turbo with the long section out (Shown on bench for Clarity) Install the turbine outlet gasket. There is only way it can be installed Use a 17mm socket & torque wrench to install the four (4) M10 crimp nuts.  Torque to 42-48 ft-lbs
    • (Shown on Bench for Clarity) By hand, install the four (4) M10 studs into the turbo with the long section out

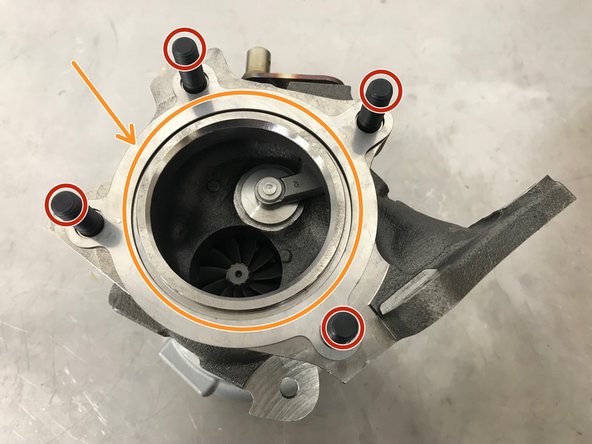

    • (Shown on bench for Clarity) Install the turbine outlet gasket. There is only way it can be installed

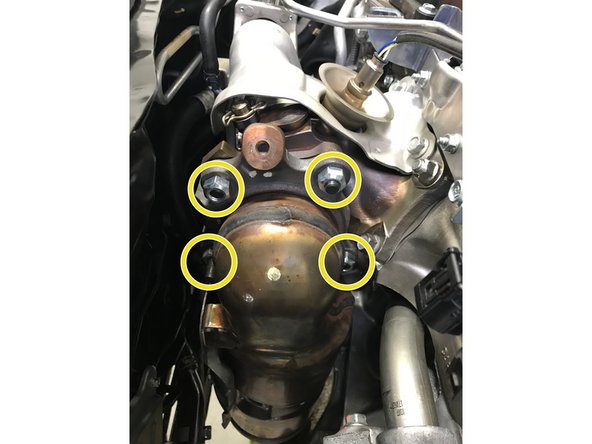

    • Use a 17mm socket & torque wrench to install the four (4) M10 crimp nuts. Torque to 42-48 ft-lbs

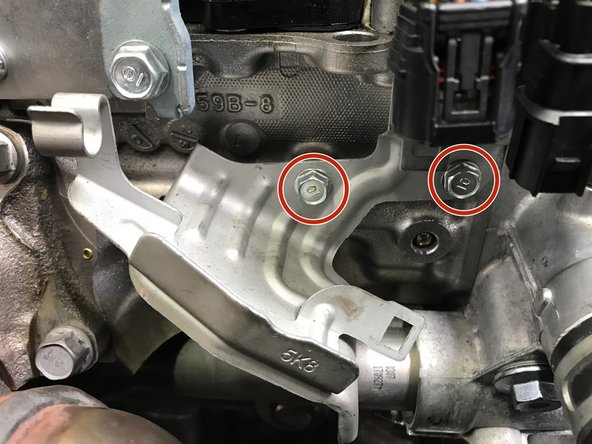

  66. Use a 10mm socket & torque wrench to install the two (2) 10mm bolts and bracket.  Torque to 8-10 ft-lbs
    • Use a 10mm socket & torque wrench to install the two (2) 10mm bolts and bracket. Torque to 8-10 ft-lbs

  67. Use a 12mm wrench to install the three (3) 10mm bolts and heat shield.  Torque to 15-19 ft-lbs
    • Use a 12mm wrench to install the three (3) 10mm bolts and heat shield. Torque to 15-19 ft-lbs

    • Some aftermarket downpipes may not have the provision for this heat shield

  68. Use the specialty O2 sensor socket to install the secondary O2 sensor.  Torque to 30-33 ft-lbs
    • Use the specialty O2 sensor socket to install the secondary O2 sensor. Torque to 30-33 ft-lbs

  69. Install the secondary O2 sensor wiring harness onto the bracket Install the primary O2 sensor wiring harness onto the bracket
    • Install the secondary O2 sensor wiring harness onto the bracket

    • Install the primary O2 sensor wiring harness onto the bracket

  70. Install the primary wire into the metal clip Connect the primary sensor to the wiring harness as indicated by orange arrow
    • Install the primary wire into the metal clip

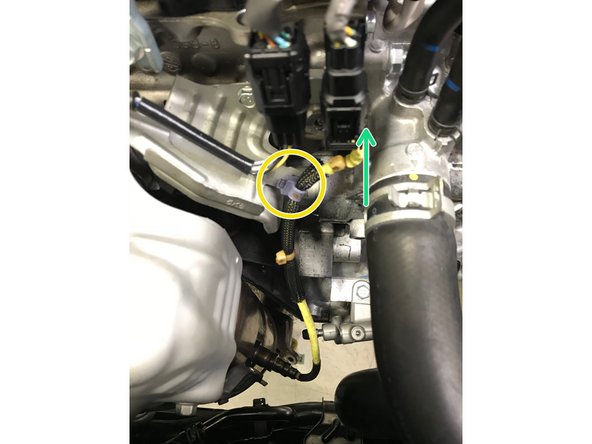

    • Connect the primary sensor to the wiring harness as indicated by orange arrow

    • Install the purple clip on the secondary wire into the bracket

    • Connect the secondary sensor to the wiring harness as indicated by green arrow

  71. Installation of the TIP follows the same process for removal in reverse Lower the TIP into the engine bay with the TIP rotated towards the front of the car Rotate and lower the TIP into the engine bay then move it towards the driver's side of the engine bay
    • Installation of the TIP follows the same process for removal in reverse

    • Lower the TIP into the engine bay with the TIP rotated towards the front of the car

    • Rotate and lower the TIP into the engine bay then move it towards the driver's side of the engine bay

    • Pull the oil dip stick out a couple inches and flex out of way

    • Move the TIP further to the driver's side while sliding the TIP over the stud in the compressor housing

    • Reinstall the oil dip stick

  72. With the TIP loosely in position on the turbo, we will begin the most frustrating part of the entire installation. Using the Magnet on a Stick we can loosely thread the nut onto the stud and the bolts into the compressor housing without the risk of loosing the hardware in the engine bay
    • With the TIP loosely in position on the turbo, we will begin the most frustrating part of the entire installation.

    • Using the Magnet on a Stick we can loosely thread the nut onto the stud and the bolts into the compressor housing without the risk of loosing the hardware in the engine bay

  73. An installed TIP is shown out of the car for clarity The three (3) red circles show the locations of the 12mm bolts
    • An installed TIP is shown out of the car for clarity

    • The three (3) red circles show the locations of the 12mm bolts

    • The orange circle shows the location of the 12mm nut and stud

    • Use the magnet on a stick tech tip shown in Step 75 to first loosely install the bolts and nut

    • Tighten the hardware and torque to 15-19 ft-lbs

  74. Use a 10mm socket & torque wrench to install the two (2) TIP mounting bolts.  Torque to 8-10 ft-lbs
    • Use a 10mm socket & torque wrench to install the two (2) TIP mounting bolts. Torque to 8-10 ft-lbs

  75. Pull the hose out and reinstall the band clamp in the same orientation it came off
    • Pull the hose out and reinstall the band clamp in the same orientation it came off

    • Push the hose onto the TIP in the direction of the arrow

    • Use a 10mm socket & ratchet or Phillips screwdriver to tighten the worm-gear clamp until snug

  76. Use a 10mm socket to install the bolt holding the "T" connection.  Torque to 8-10 ft-lbs
    • Use a 10mm socket to install the bolt holding the "T" connection. Torque to 8-10 ft-lbs

    • Pop the hose into the plastic clip

    • Push the hose onto the plastic "T". Use pliers to install the spring clamp at the end of the coolant hose around the "T" connection

  77. Push the BPV hoses onto the metal tubes in the direction of the red arrows
    • Push the BPV hoses onto the metal tubes in the direction of the red arrows

    • Use pliers to install the spring clamps onto the end of the hoses around the metal pipe

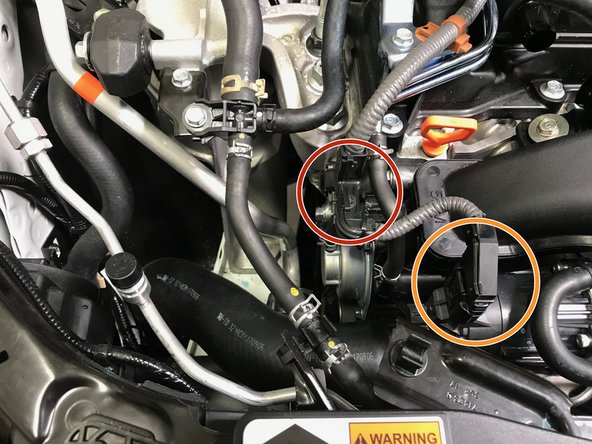

  78. Install the wiring harness back onto the bracket
    • Install the wiring harness back onto the bracket

    • Reconnect the wiring harness to the WGA

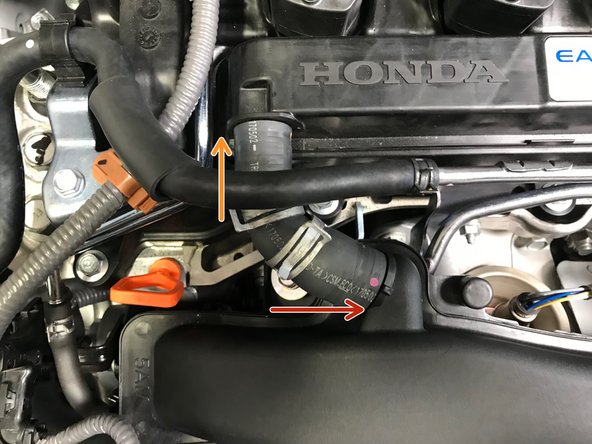

  79. Push the hose onto the TIP first, following the red arrow. Push the hose onto the valve cover second
    • Push the hose onto the TIP first, following the red arrow.

    • Push the hose onto the valve cover second

    • Use pliers to install the spring clamps onto the end of the hose

  80. Use a 10mm socket & torque wrench to install the two (2) 10mm bolts.  Torque to 8-10 ft-lbs
    • Use a 10mm socket & torque wrench to install the two (2) 10mm bolts. Torque to 8-10 ft-lbs

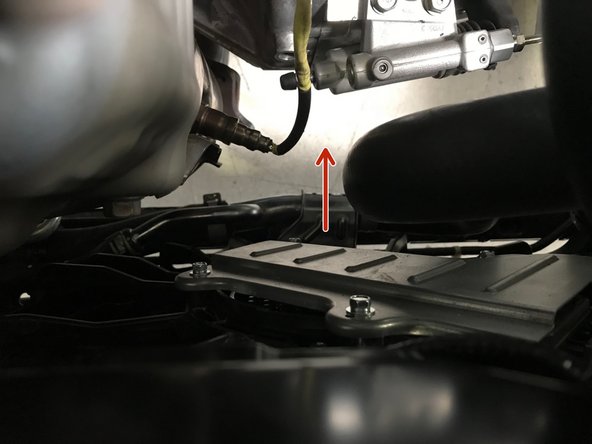

  81. Move the radiator hose back into the correct position so the bolt holes and bracket holes align Use a 10mm socket & torque wrench to install the two (2) 10mm bolts holding the lower radiator hose in place.  Torque to 8-10 ft-lbs
    • Move the radiator hose back into the correct position so the bolt holes and bracket holes align

    • Use a 10mm socket & torque wrench to install the two (2) 10mm bolts holding the lower radiator hose in place. Torque to 8-10 ft-lbs

  82. Use a 14mm socket or wrench to install the four (4) 14mm bolts and brackets.  Torque to 38-42 ft-lbs Use a 14mm socket or wrench to install the four (4) 14mm bolts and brackets.  Torque to 38-42 ft-lbs
    • Use a 14mm socket or wrench to install the four (4) 14mm bolts and brackets. Torque to 38-42 ft-lbs

  83. Use a 14mm socket & torque wrench to install the three (3) 14mm nuts/studs.  Torque to 30-40 ft-lbs
    • Use a 14mm socket & torque wrench to install the three (3) 14mm nuts/studs. Torque to 30-40 ft-lbs

  84. Apply a small amount of silicone spray to the end of the hanger rod
    • Apply a small amount of silicone spray to the end of the hanger rod

    • Push the rubber hanger onto the hanger rod

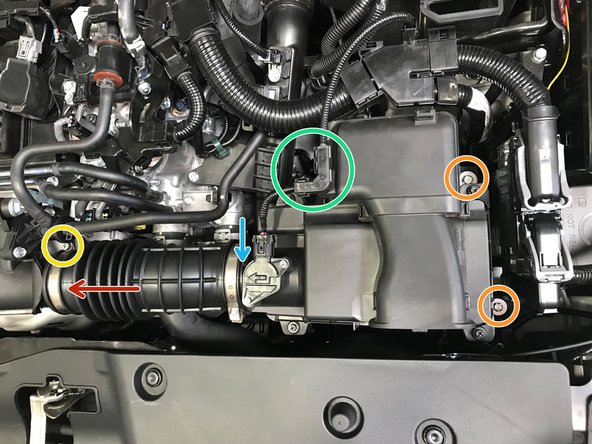

  85. Lower the airbox assembly into the engine bay
    • Lower the airbox assembly into the engine bay

    • Install the induction hose onto the TIP

    • Use a 10mm socket and torque wrench to install the two (2) 10mm bolts that hold the airbox assembly. Torque to 3-4 ft-lbs

    • Use a 5.5mm socket or phillps screwdriver to tighten the band clamp until snug

    • Install the wiring harness into the airbox

    • Reconnect the MAF sensor wiring

  86. Using genuine Honda coolant, fill the coolant reservoir to MAX
    • Using genuine Honda coolant, fill the coolant reservoir to MAX

    • Leave the cap off the coolant reservoir for first start and engine warm up

    • For the first engine start be on alert for any oil and coolant leaks. It is recommend to have a second person watching the engine bay for leaks on first start

    • Start the engine and inspect for leaks. Shut down immediately is a leak is found. Fix any leaks found

    • Some smell and faint smoke will be present on first start-up. This is normal and will not happen after the 2nd or 3rd heat cycle

    • Use of 5W-30 engine oil recommended

  87. Install the seventeen (17) plastic push-clips. Orange arrows identify the push-clips described in the next step
    • Install the seventeen (17) plastic push-clips. Orange arrows identify the push-clips described in the next step

    • Use 10mm socket & torque wrench to install the seven (7) bolts shown in red circles. Torque to 8-10 ft-lbs

    • Use 5mm Allen and torque wrench to install the two (2) bolts shown in green circles. Torque to 8-10 ft-lbs

  88. Install the remaning six (6) push-clips on each side of the skidtray Install the remaning six (6) push-clips on each side of the skidtray
    • Install the remaning six (6) push-clips on each side of the skidtray

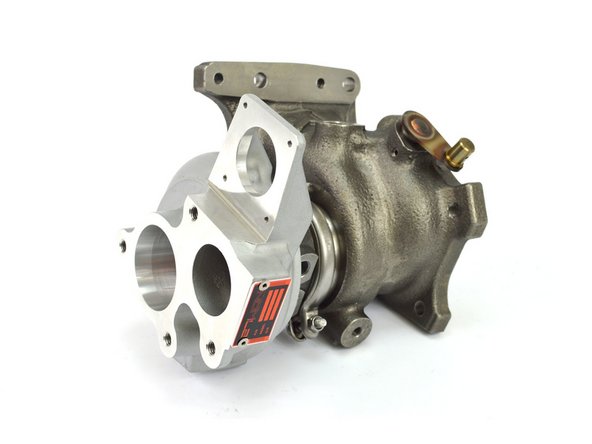

  89. Check the engine coolant level in the reservoir for the next few days as the air in the cooling system works itself out.  Refill as needed
    • Check the engine coolant level in the reservoir for the next few days as the air in the cooling system works itself out. Refill as needed

    • Some smell and faint smoke will be present on first start-up. This is normal and will not happen after the 2nd or 3rd heat cycle.

    • To get the best performance from your W1 Turbo, we highly recommend a custom tune.

    • A custom tune for your specific vehicle with your specific modifications will provide the best performance for your Civic and the location you live in

    • Please see the next step for expectations for driving a performance turbo equipped vehicle

    • An upgraded clutch is required for peak performance use of the W1 turbocharger

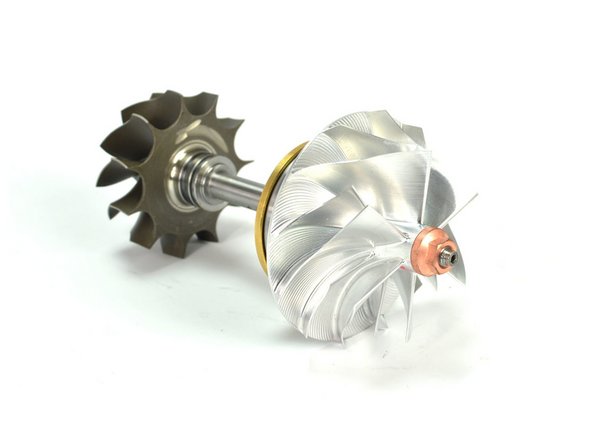

  90. A vehicle equipped with a larger performance turbocharger may require a change in the way it is driven.  A properly tuned vehicle with a larger turbocharger definitely will
    • A vehicle equipped with a larger performance turbocharger may require a change in the way it is driven. A properly tuned vehicle with a larger turbocharger definitely will

    • A properly tuned vehicle with a larger turbocharger will experience peak torque later in the RPM range. This may make the vehicle feel more sluggish in the the lower RPM range, approximately sub 3000rpm. However, peak power will also move higher in the RPM range and carry to redline

    • We recommend shifting at a higher RPM (~300rpm higher) to combat this feeling

    • A larger performance turbocharger will also create more pronounced turbo induction noises, your gas mileage may drop significantly for the first few tanks from you constantly wanting to hear the turbo spool

  91. This completes the installation of your 27WON W1 Performance Drop-In Turbo Kit
    • This completes the installation of your 27WON W1 Performance Drop-In Turbo Kit

    • We hope you were impressed with your 27WON experience and love your new W1 Turbo for years to come. Email us at sales@27won.com or call us at 571-271-0271 with any questions or concerns

    • Please Leave a review here: https://store.27won.com/2016-civic-turbo...

    • Share your experience using #27WON on Instagram and Facebook

Finish Line

Dozuki System

Member since: 09/24/2009

1 Reputation

24 Guides authored

0 Comments

Add Comment

View Statistics:

Past 24 Hours: 0

Past 7 Days: 2

Past 30 Days: 20

All Time: 1,371
