Introduction

In this installation guide we have provided step by step instructions to setup, remove the OEM exhaust, and install the 27WON Performance Exhaust.

Advisory:

  • Working under the vehicle requires a safe and sturdy location for the vehicle to sit on jackstands.
  • The exhaust piping will be hot after recent vehicle operation. Allow the vehicle to cool or use a fan to cool the exhaust piping before working on the vehicle.
  1. First and foremost; THANK YOU for becoming a part of the 27WON Family.  We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support
    • First and foremost; THANK YOU for becoming a part of the 27WON Family. We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support

  2. Locate the engine under tray to gain access to the connection between the front-pipe and down stream exhaust
    • Locate the engine under tray to gain access to the connection between the front-pipe and down stream exhaust

    • Use 5mm Allen Key to remove the two (2) bolts shown in green circles

    • Use 10mm socket & ratchet to remove the five (5) bolts shown in red circles

    • Use a flathead screwdriver to remove the fifteen (15) plastic push-clips. Orange arrows & circles identify push-clips in Step 3

    • Yellow square identifies cross-member in Step 6

    • The bracket highlighted in yellow is not found on SI models

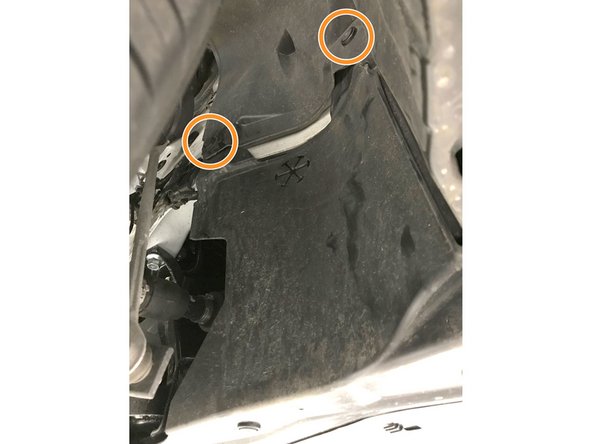

  3. Use large flat head screw driver to remove push-clips on each side of undertray Use large flat head screw driver to remove push-clips on each side of undertray
    • Use large flat head screw driver to remove push-clips on each side of undertray

  4. Use 14mm socket & ratchet to remove the 4 bolts holding the cross member
    • Use 14mm socket & ratchet to remove the 4 bolts holding the cross member

    • This bracket is not found on the SI models

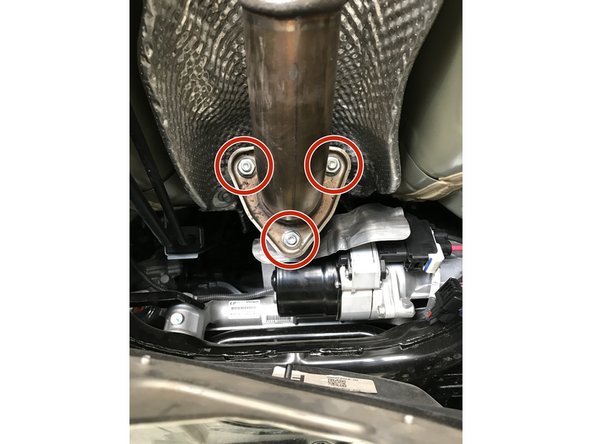

  5. Locate the connection between the front-pipe and down stream exhaust
    • Locate the connection between the front-pipe and down stream exhaust

    • Verify that the exhaust is not to hot to touch, if still hot use a fan to cool the exhaust piping before proceeding

    • Use 14mm socket & ratchet to remove three (3) OE nuts in red circles, as shown

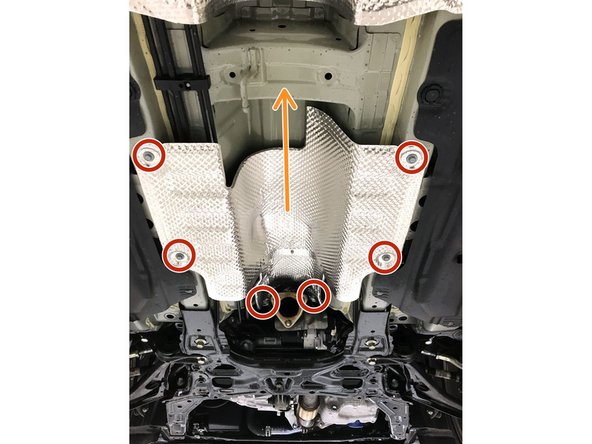

  6. Front-pipe back exhaust has been removed for clarity of image, but doe snot need to be removed to relocate the heat shield out of the way
    • Front-pipe back exhaust has been removed for clarity of image, but doe snot need to be removed to relocate the heat shield out of the way

    • Use a 10mm socket and ratchet to remove the six bolts holding the heat shield

    • Relocate the heat shield in the direction of the arrow

    • With front-pipe back exhaust installed; Set the heat shield on the pipe. You only need to provide clearance around the flange

    • With front-pipe back exhaust removed; Remove the heat shield from the vehicle

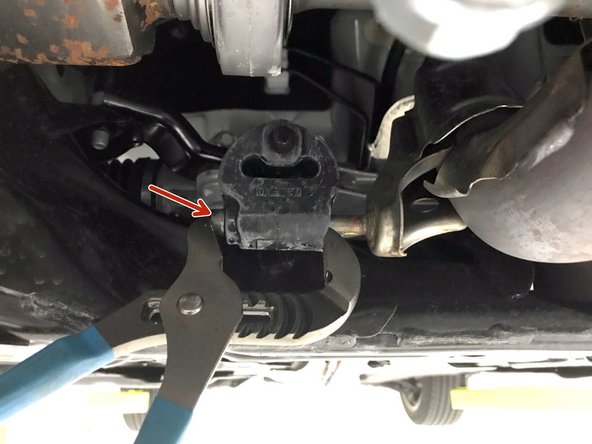

  7. Apply a small amount of silicone spray to the end of the hanger rod
    • Apply a small amount of silicone spray to the end of the hanger rod

    • Use the tongue and groove pliers as shown to remove the rubber hanger

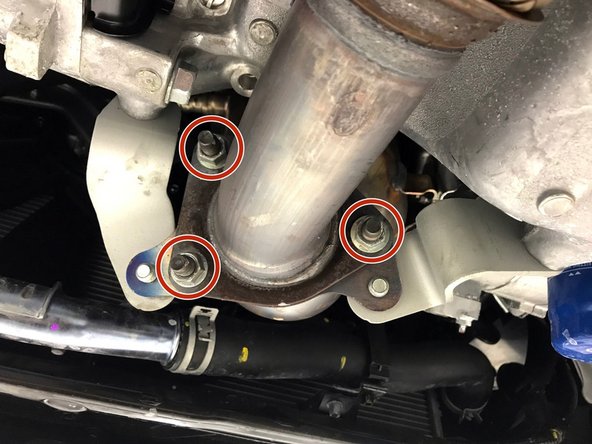

  8. Use a 14mm socket and ratchet to remove the three OE nuts
    • Use a 14mm socket and ratchet to remove the three OE nuts

    • It is possible that the stud will thread out of the downpipe flange. This is not an issue, the stud can be threaded back into the flange like a bolt

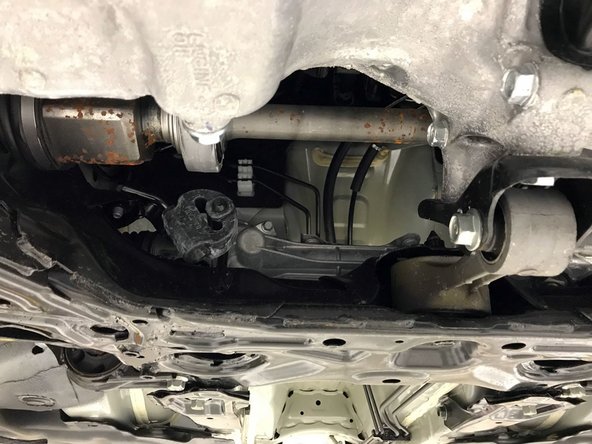

  9. Remove the OE front-pipe from the vehicle through the access point directly under the engine
    • Remove the OE front-pipe from the vehicle through the access point directly under the engine

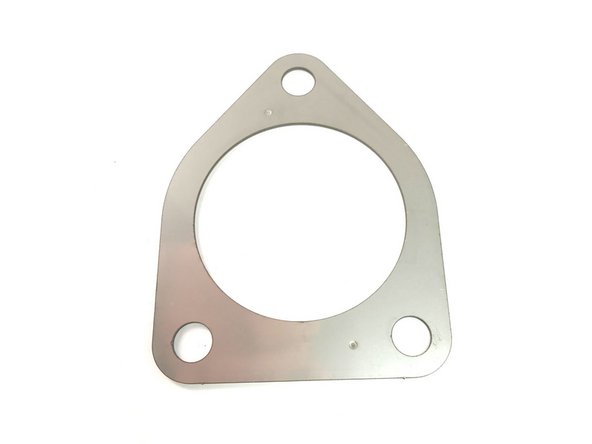

  10. Locate the provided "house" gasket for front-pipe installation
    • Locate the provided "house" gasket for front-pipe installation

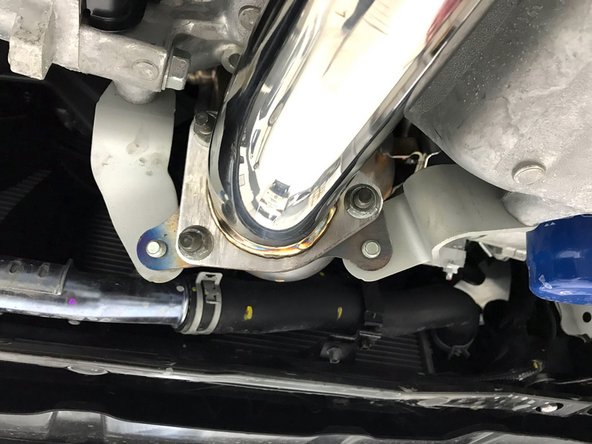

  11. Install the provide "house" gasket between the flanges
    • Install the provide "house" gasket between the flanges

    • Align the studs through the flange then hand tighten the nuts

    • Use a 14mm socket & torque wrench to torque each to 30-40 ft-lbs

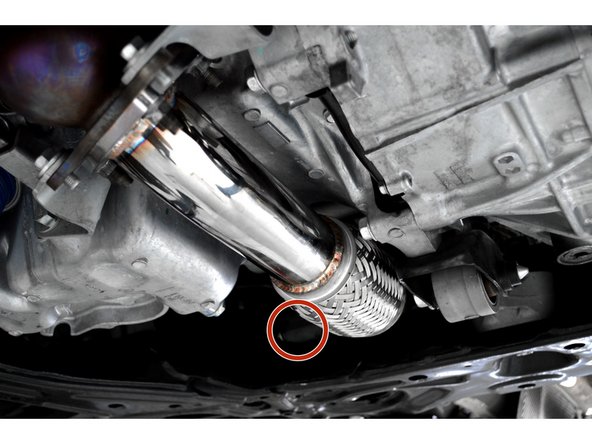

  12. Reinstall the OE rubber hanger
    • Reinstall the OE rubber hanger

    • Reinstall the OE heat shield with the bolts hand tight

    • Use 10mm socket & toque wrench to torque to 6-8 ft-lbs

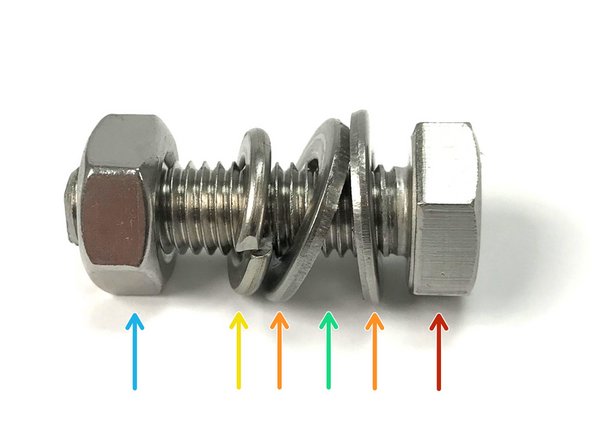

  13. The location of the flat washers, flanges, and split lock washer are critical for proper fastening and vibration resistance.
    • The location of the flat washers, flanges, and split lock washer are critical for proper fastening and vibration resistance.

    • 17mm M10 Nut

    • M10 Split Lock Washer

    • M10 Flat Washers

    • Exhaust Pipe Flange Location - Between the two flat washers

    • 17mm M10 Bolt Head

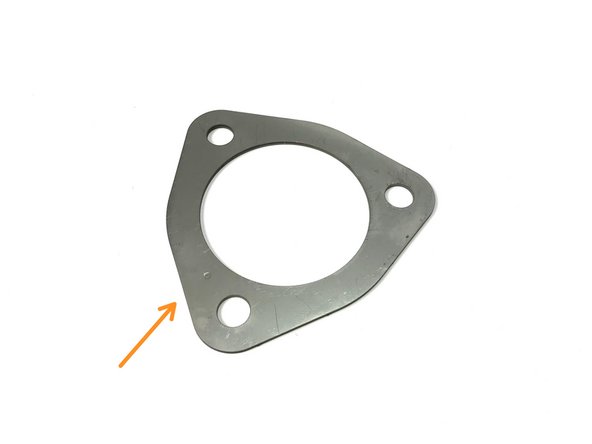

  14. Locate the provided "tri-bolt" gasket for front-pipe installation Locate QTY=3 provided 35mm length assembled M10 bolts Locate QTY=3 provided step nuts
    • Locate the provided "tri-bolt" gasket for front-pipe installation

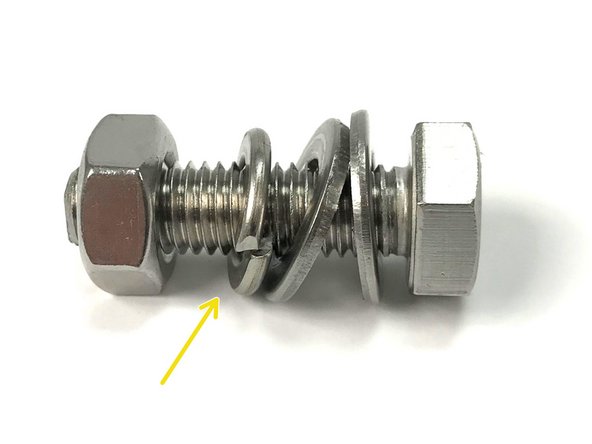

    • Locate QTY=3 provided 35mm length assembled M10 bolts

    • Locate QTY=3 provided step nuts

  15. For your assistance in installing the 27WON Front-Pipe, we have laid out the installation with the 27WON Front-Pipe Back Exhaust and OE Front-Pipe Back Exhaust
    • For your assistance in installing the 27WON Front-Pipe, we have laid out the installation with the 27WON Front-Pipe Back Exhaust and OE Front-Pipe Back Exhaust

    • Step 16 Show the installation with the 27WON Front-Pipe Back Exhaust

    • Step 17 Show the installation with the OE Front-Pipe Back Exhaust

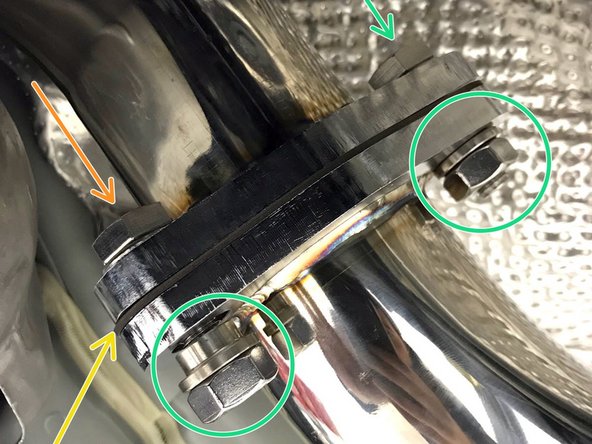

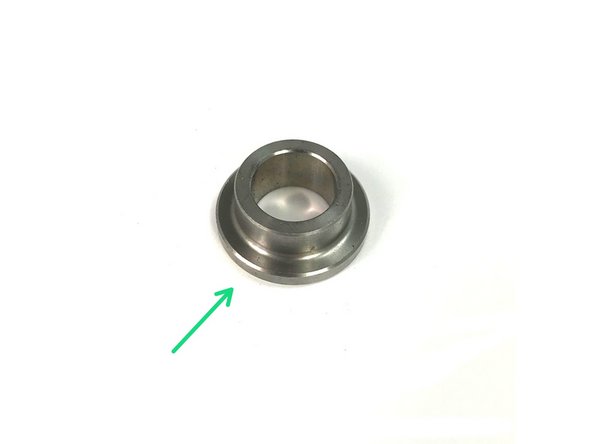

  16. If you are connecting to the OE front-pipe back exhaust, skip to Step 17 Install the provide tri-bolt metal gasket
    • If you are connecting to the OE front-pipe back exhaust, skip to Step 17

    • Install the provide tri-bolt metal gasket

    • Using the 35mm length M10 bolts, insert the bolts through the front-pipe flange first

    • Install the provided step washers and nuts as shown

    • When using the step washer, DO NOT use the flat washer and split lock washer

    • It is important that the provided step nuts are used with the 27WON Front-Pipe Back Exhaust to properly align the flanges

    • While hand tightening the nuts, verify that the step washers inserting into the flange correctly. Use a 17mm socket & torque wrench to torque the bolts to 30-40 ft-lbs

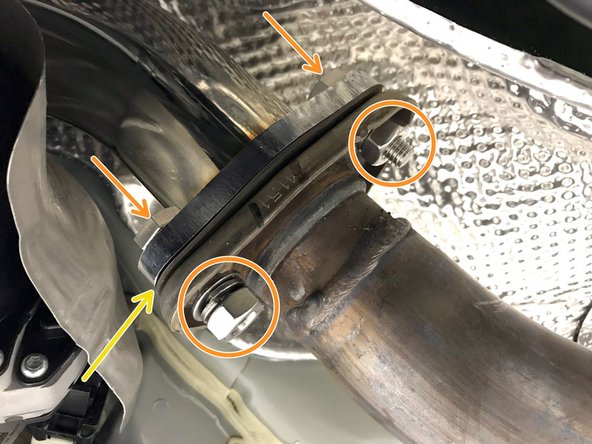

  17. If you have already connect your Front-Pipe to the 27WON Exhaust then you can skip this step
    • If you have already connect your Front-Pipe to the 27WON Exhaust then you can skip this step

    • Install the provided metal gasket

    • Using the 35mm length M10 bolts, insert the bolts through the front-pipe flange first

    • See Step 13 for hardware setup

    • Install the remaining washers and nuts. Use a 17mm socket & torque wrench to torque the bolts to 30-40 ft-lbs

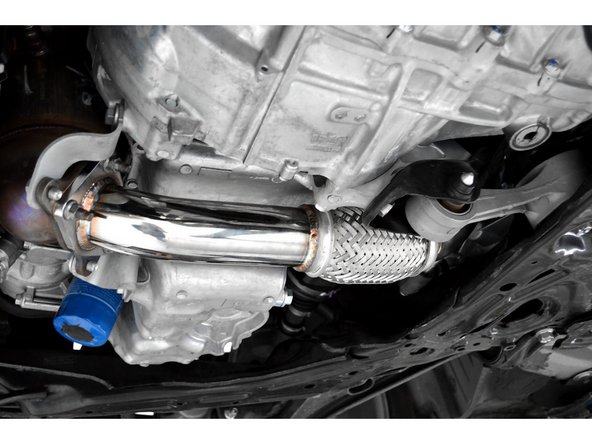

  18. Start the vehicle to check for leaks or rattles.  If none, then take a spin around the block for further verification.  If you do find a leak or rattle, please inspect the exhaust further
    • Start the vehicle to check for leaks or rattles. If none, then take a spin around the block for further verification. If you do find a leak or rattle, please inspect the exhaust further

    • A leak could be caused by a loose flange bolt, improperly used gasket, or if debris is stuck between the gasket and flange

    • A rattle could be caused by misaligned pipe or a rubber hanger being orientated incorrectly

    • If you have exhausted all investigation then give us a call and we would be happy to help and resolve the issue with you

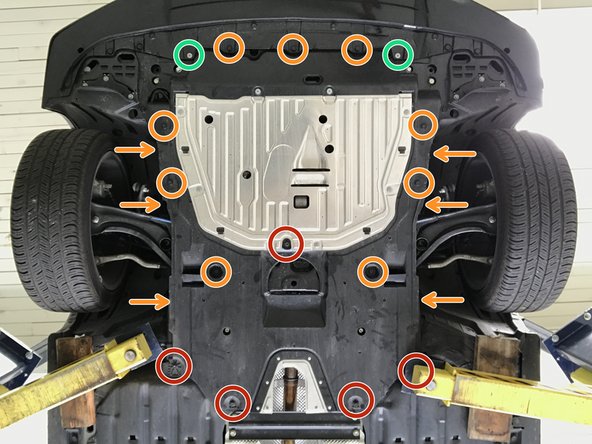

  19. Re-install the 10mm bolts with a 10mm socket & torque wrench.  Torque to 8-12 ft-lbs
    • Re-install the 10mm bolts with a 10mm socket & torque wrench. Torque to 8-12 ft-lbs

    • Re-install the 5mm socket flange bolts with the 5mm Allen key & torque wrench. Torque to 6-8 ft-lbs

    • Re-install the push clips at the bottom of the undertray and the sides (shown in Step 20)

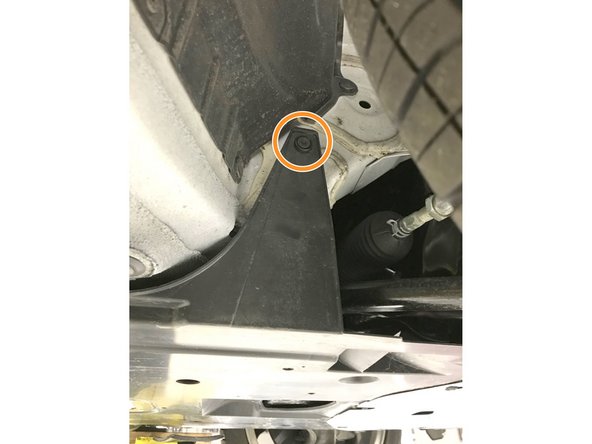

  20. Re-install the push clips at the side of the undertray Re-install the push clips at the side of the undertray
    • Re-install the push clips at the side of the undertray

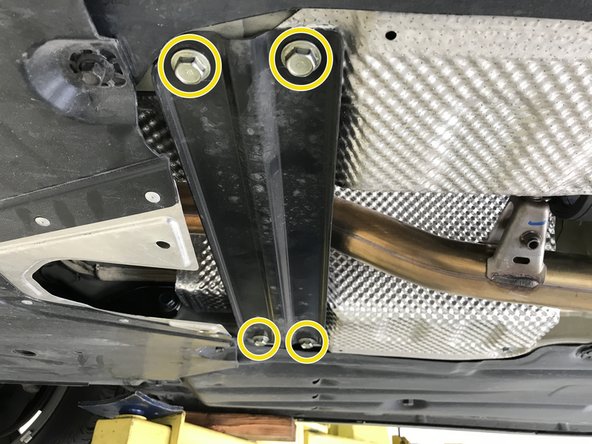

  21. Re-install the cross member.  Use a 14mm socket & torque wrench to torque the bolts to 25-35 ft-lbs
    • Re-install the cross member. Use a 14mm socket & torque wrench to torque the bolts to 25-35 ft-lbs

    • The bracket highlighted in yellow is not found on SI models

  22. This completes the installation of your 27WON Performance Exhaust
    • This completes the installation of your 27WON Performance Exhaust

    • We hope you were impressed with your 27WON experience and love your new exhaust for years to come. Email us at sales@27won.com or call us at 571-271-0271 with any questions or concerns

    • Please Leave a review here: https://store.27won.com/civic-hatchback-...

    • Share your experience using #27WON on Instagram and Facebook
