CV2-3-020 Accord Front Strut Tower Bar

Written By: Josh Rivas (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

8

Time Required

00:05:00 - 00:15:00

Sections

1

Flags

0

Introduction

In this installation guide we have provided step by step instructions to install the 27WON Performance Front Strut Tower Bar.

Advisory:

  • The engine bay will be hot after recent vehicle operation. Allow the vehicle to cool or use a fan to cool the engine bay before working on the vehicle.

  1. First and foremost; THANK YOU for becoming a part of the 27WON Family. We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support

    • First and foremost; THANK YOU for becoming a part of the 27WON Family. We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support

    • These instructions were written with a 2020 Honda Accord

  2. Locate the strut tower tops in the engine bay Shown are the passenger and driver side strut tower tops Shown are the passenger and driver side strut tower tops

    • Locate the strut tower tops in the engine bay

    • Shown are the passenger and driver side strut tower tops

  3. If you have an aftermarket suspension that could move when undone, be sure to note where it is located prior to the removal of the hardware. Failure to do so could change the alignment of your vehicle when reinstalling the strut hardware Remove three (3) flange nuts with a 14mm deep socket and ratchet wrench from the passenger side

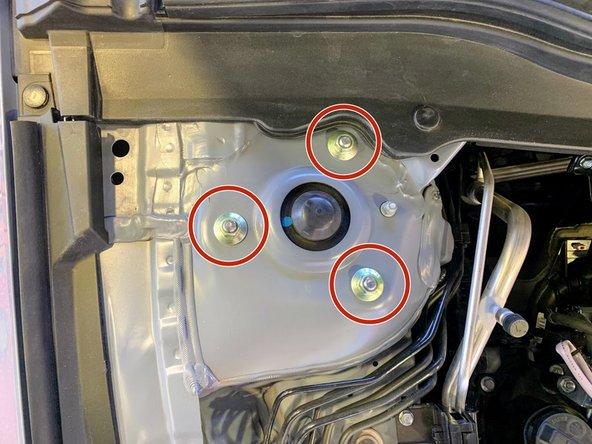

    • If you have an aftermarket suspension that could move when undone, be sure to note where it is located prior to the removal of the hardware. Failure to do so could change the alignment of your vehicle when reinstalling the strut hardware

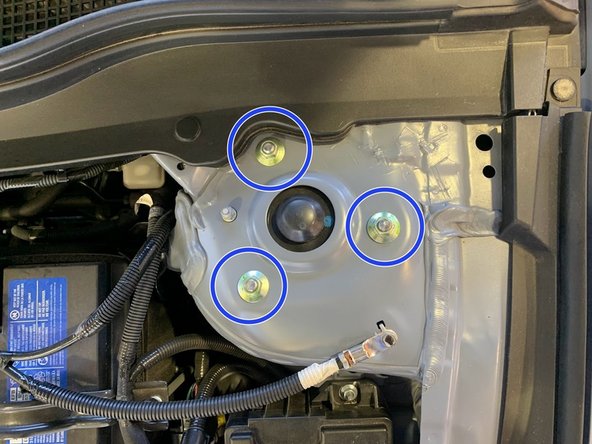

    • Remove three (3) flange nuts with a 14mm deep socket and ratchet wrench from the passenger side

    • Remove three (3) flange nuts with a 14mm deep socket and ratchet wrench from the driver side

    • Clean any debris from the strut top surfaces

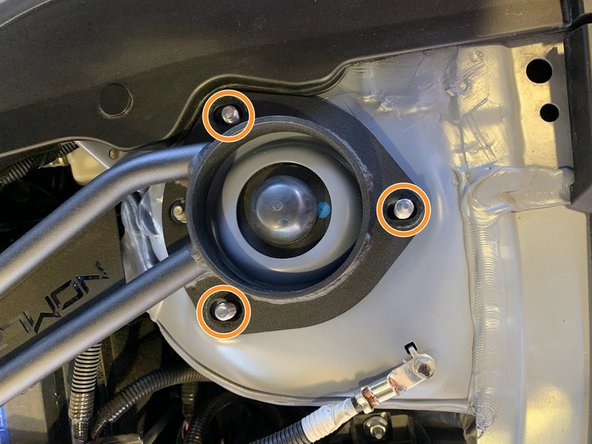

  4. Orientate the strut bar as shown Place each end of the strut bar down on the strut tops over the studs Place each end of the strut bar down on the strut tops over the studs

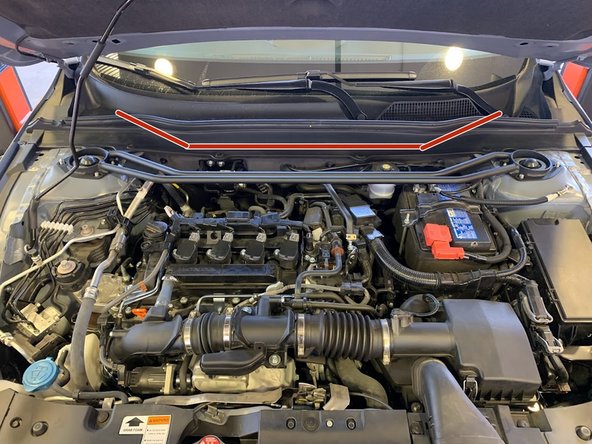

    • Orientate the strut bar as shown

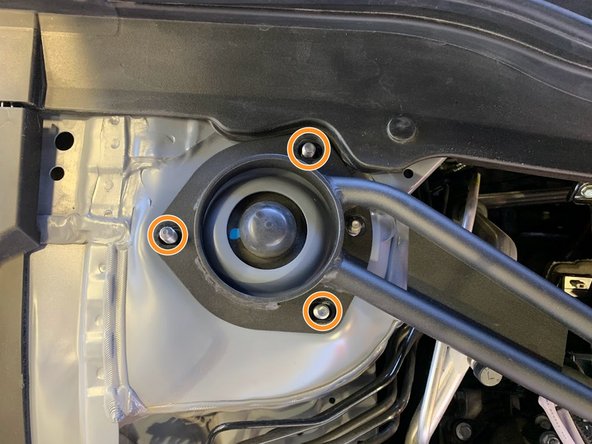

    • Place each end of the strut bar down on the strut tops over the studs

  5. The strut bar sits close to the battery and cables, please verify the cables are not pushing up into the strut bar If the cables are pushing into the strut bar, adjust the cables by flexing them toward the front of the car a bit to create clearance

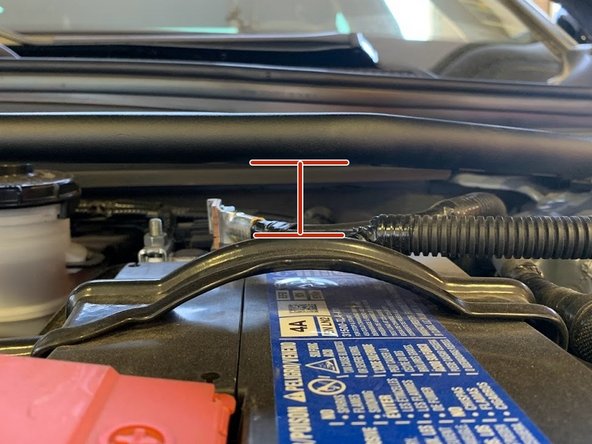

    • The strut bar sits close to the battery and cables, please verify the cables are not pushing up into the strut bar

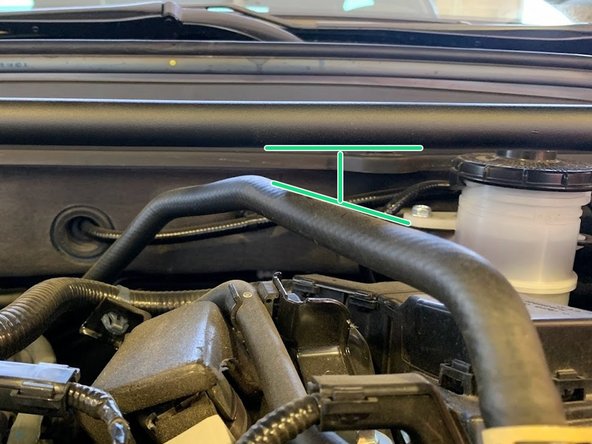

    • If the cables are pushing into the strut bar, adjust the cables by flexing them toward the front of the car a bit to create clearance

    • The battery cables are insulated and protected by a plastic jacket but minimizing contact with the bar is preferred

    • The strut bar sits close to the hose as shown, please verify the hose is not pushing up into the strut bar

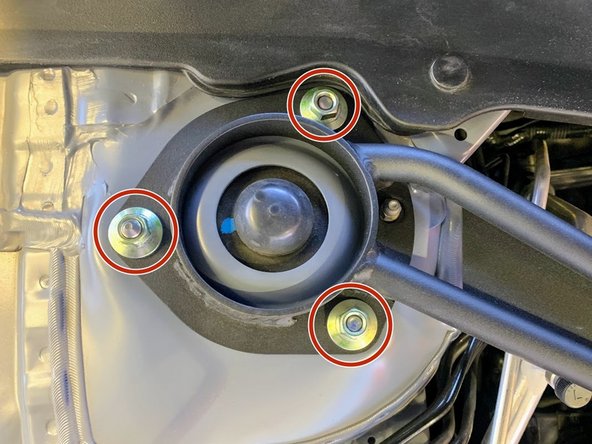

  6. Install the three (3) OEM flange nuts

    • Install the three (3) OEM flange nuts

    • Using a torque wrench and 14mm socket, torque each nut to 45-47 lb-ft

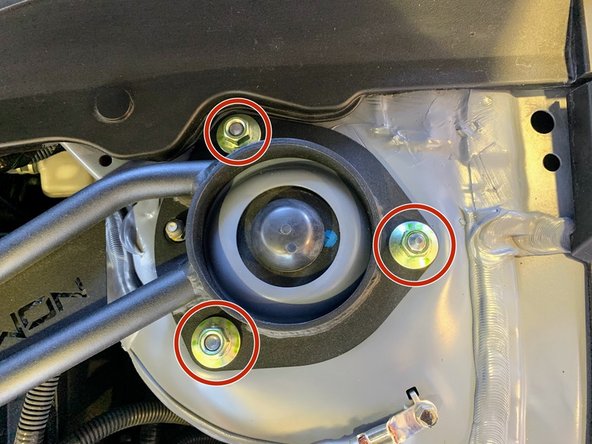

  7. Install the three (3) OEM flange nuts

    • Install the three (3) OEM flange nuts

    • Using a torque wrench and 14mm socket, torque each nut to 45-47 lb-ft

  8. This completes the installation of your 27WON Performance Front Strut Tower Bar

    • This completes the installation of your 27WON Performance Front Strut Tower Bar

    • We hope you were impressed with your 27WON experience and love your new Front Strut Tower Bar for years to come. Email us at sales@27won.com or call us at 571-271-0271 with any questions or concerns

    • Please leave a review here: https://store.27won.com/10th-gen-accord-...

    • Stay Connected with the latest developments with the 27WON Monthly Newsletter: https://store.27won.com/27won-newsletter...

    • See the latest Products and Tech Videos from 27WON with a quick Subscribe: https://www.youtube.com/27won

    • Share your experience using #27WON on Instagram and Facebook
