Introduction

In this installation guide, we have provided step-by-step instructions to install the left and right-hand side 27WON Performance Fender Shrouds.

Advisory:

  • Fitment confirmed for Left-hand drive version of the 2016-2021 Honda Civic. Fitment not confirmed for Right-hand drive models
  • Canadian Fitment is a different part number from US market. These instructions are for both versions
  1. First and foremost; THANK YOU for becoming a part of the 27WON Family.  We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support
    • First and foremost; THANK YOU for becoming a part of the 27WON Family. We hope to REDEFINE your experience of the aftermarket with the highest level Parts, Customer Service, Packaging, & Support

    • Canadian version installs similarly to what's presented here but wash fluid reservoir is on the driver side instead of passenger

  2. These instructions are written using a readily available riv rut install tool.  The following steps require a tool like this. A similar style riv nut tool will suffice This riv nut tool can be had for on around $40 from places like Amazon or your local hardware store. Be sure to have an M5 size adapter in your kit Riv Nut are supplied with the Fender Shroud set
    • These instructions are written using a readily available riv rut install tool. The following steps require a tool like this. A similar style riv nut tool will suffice

    • This riv nut tool can be had for on around $40 from places like Amazon or your local hardware store. Be sure to have an M5 size adapter in your kit

    • Riv Nut are supplied with the Fender Shroud set

  3. Open the hood to access both the driver and passenger side fender shroud areas Start on the driver-side fender shroud first

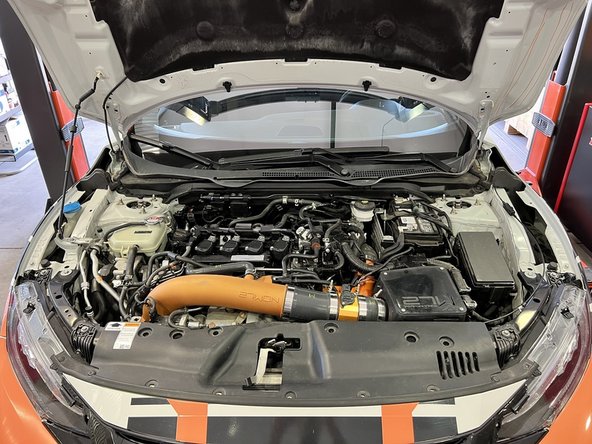

    • Open the hood to access both the driver and passenger side fender shroud areas

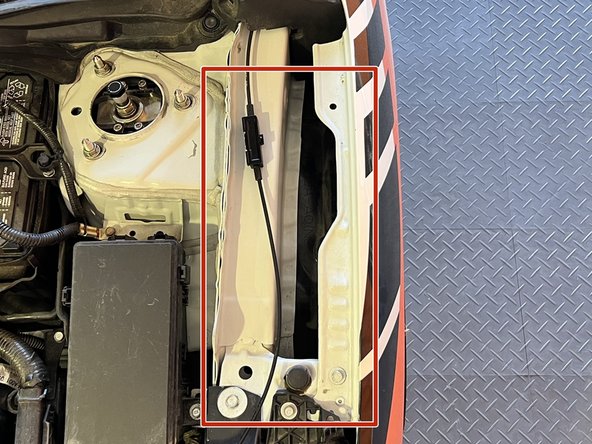

    • Start on the driver-side fender shroud first

  4. Locate small 5mm hole on driver-side fender. Place supplied Riv Nut in hole with red circle Use Riv Nut tool to install M5 Riv Nut Riv Nut successfully installed. It is confirmed installed correctly when the riv nut is snug in place and will not pull back out from the hole

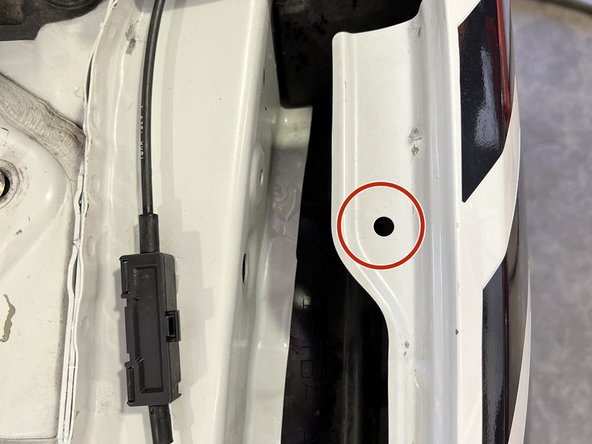

    • Locate small 5mm hole on driver-side fender. Place supplied Riv Nut in hole with red circle

    • Use Riv Nut tool to install M5 Riv Nut

    • Riv Nut successfully installed. It is confirmed installed correctly when the riv nut is snug in place and will not pull back out from the hole

  5. Use 3/8" ratchet and 12mm socket to remove 12mm bolt

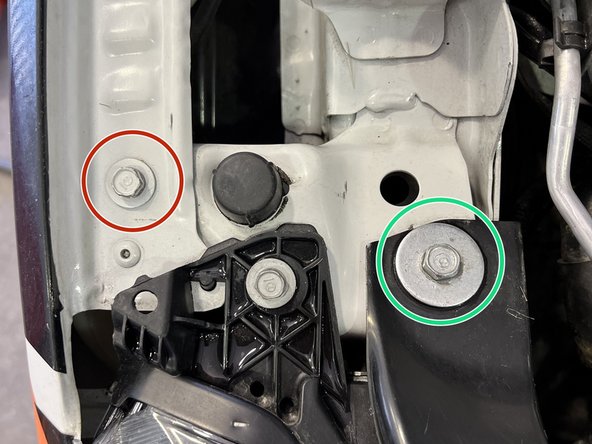

    • Use 3/8" ratchet and 12mm socket to remove 12mm bolt

    • Use 3/8" ratchet and 10mm socket to remove 10mm bolt

  6. Place Shroud as Shown

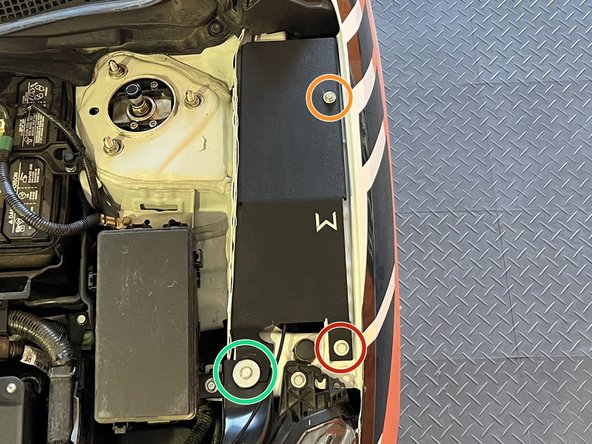

    • Place Shroud as Shown

    • Canadian fitment has large hole in this shroud for the wash fluid reservoir

    • Line up holes on bottom of shroud with the two bolts removed in the last step

    • "torque to snug" is defined as 1/4 to 1/2 more rotation after setting resistance is felt

    • Install supplied 8mm SS bolt and small washer and torque to snug

    • Reinstall 10mm bolt and torque to snug

    • Reinstall 12mm bolt and torque to snug

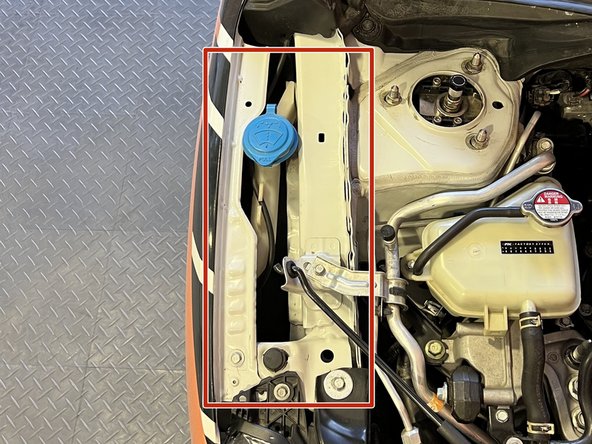

  7. Locate Passenger side (RH) fender area
    • Locate Passenger side (RH) fender area

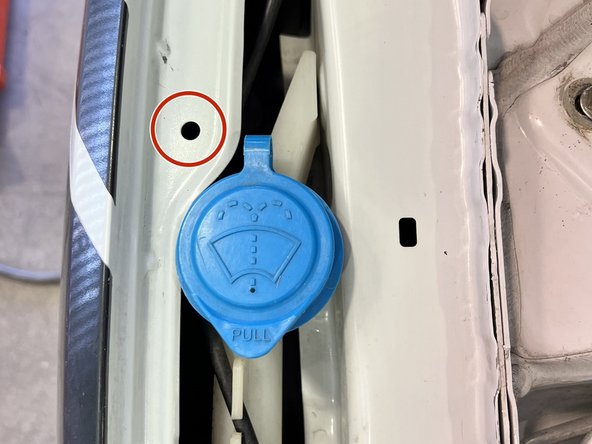

  8. Locate small 5mm hole shown in red circle. This is where we will install the last supplied Riv Nut Use Riv Nut tool to install M5 riv nut Riv Nut successfully installed. It is confirmed installed correctly when the riv nut is snug in place and will not pull back out from the hole
    • Locate small 5mm hole shown in red circle. This is where we will install the last supplied Riv Nut

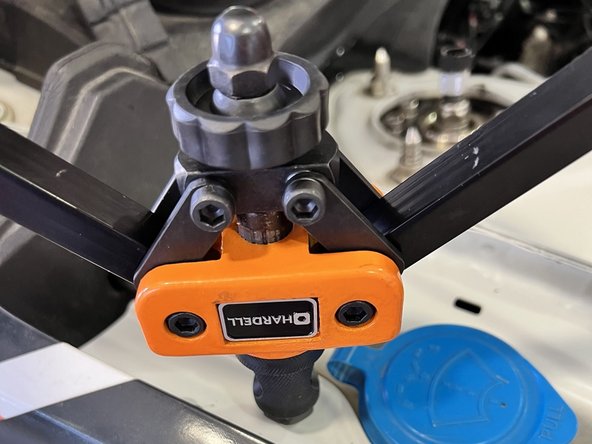

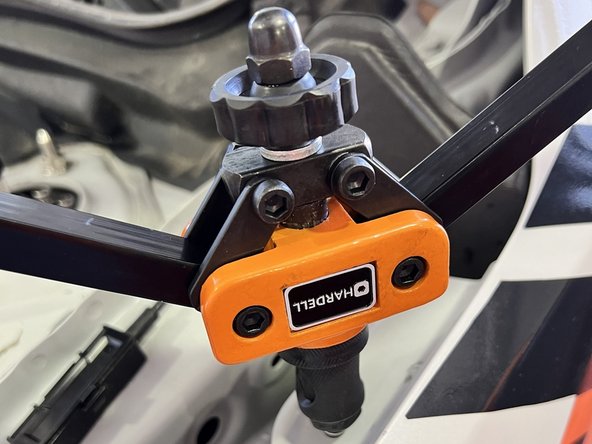

    • Use Riv Nut tool to install M5 riv nut

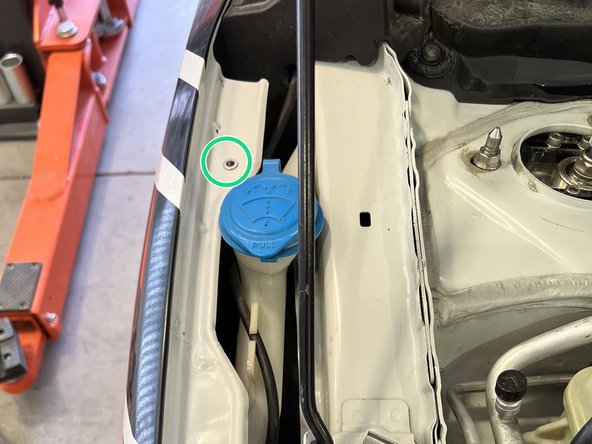

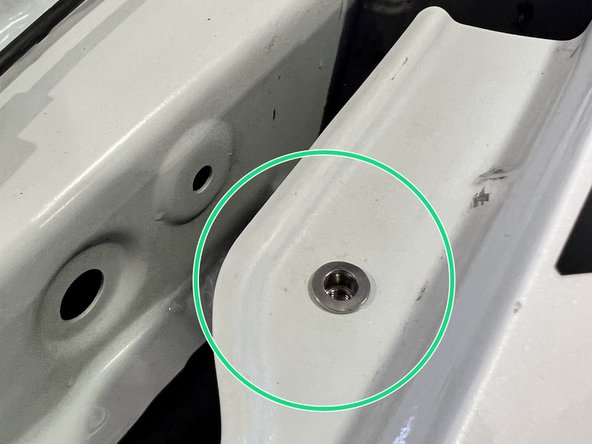

    • Riv Nut successfully installed. It is confirmed installed correctly when the riv nut is snug in place and will not pull back out from the hole

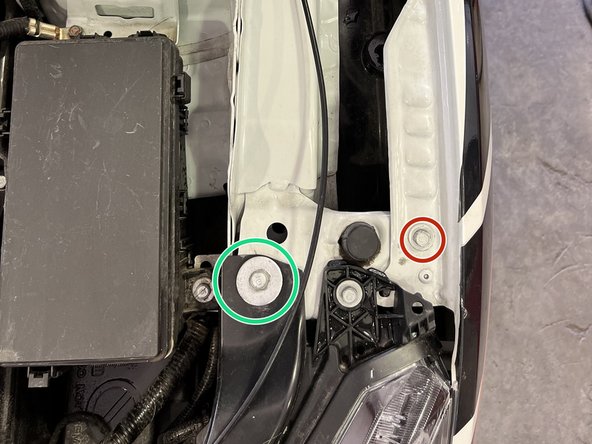

  9. Use 3/8" ratchet and 12mm socket to remove 12mm bolt
    • Use 3/8" ratchet and 12mm socket to remove 12mm bolt

    • Use 3/8" ratchet and 10mm socket to remove 10mm bolt

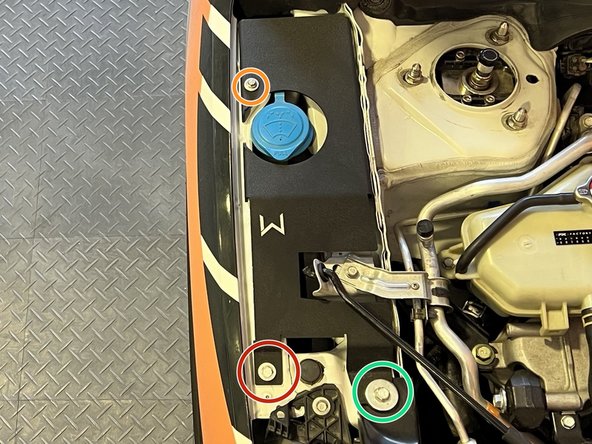

  10. Place passenger side shroud as shown
    • Place passenger side shroud as shown

    • Canadian fitment has no hole in this shroud for the wash fluid reservoir

    • Line up holes on the bottom of the shroud with the two bolts removed in the last step

    • "torque to snug" is defined as 1/4 to 1/2 more rotation after setting resistance is felt

    • Install supplied 8mm SS bolt and small washer and torque to snug

    • Reinstall 10mm bolt and torque to snug

    • Reinstall 12mm bolt and torque to snug

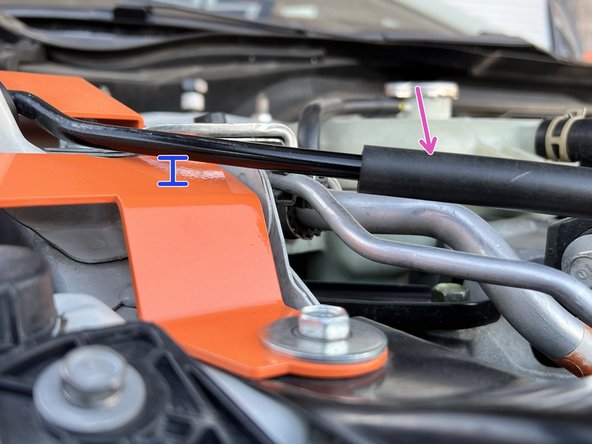

  11. Check the gap between the hood prop and the fender shroud If the gap is greater then 1/8" no adjustment is required
    • Check the gap between the hood prop and the fender shroud

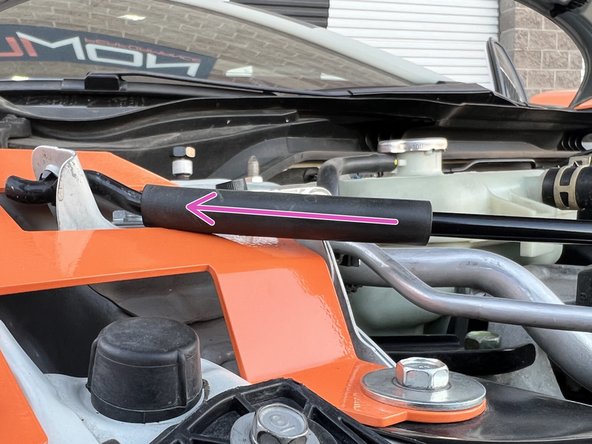

    • If the gap is greater then 1/8" no adjustment is required

    • If the gap is less than 1/8" you can slide the foam piece down the hood prop. This will help prevent chipping of the powder coat

    • Accidents, impact with curbs, variations in production. All these can impact fitment of the fender shrouds. Contact us with any questions

  12. This completes the installation of your 27WON Performance Fender Shrouds
    • This completes the installation of your 27WON Performance Fender Shrouds

    • We hope you were impressed with your 27WON experience and love your new shrouds for years to come. Email us at sales@27won.com or call us at 571-271-0271 with any questions or concerns

    • Please Leave a review here: https://store.27won.com/2016-2021-honda-...

    • Share your experience using #27WON on Instagram and Facebook
